Bolt on Swing Out / Toyota Tacoma / 3rd Gen / 2016-2023

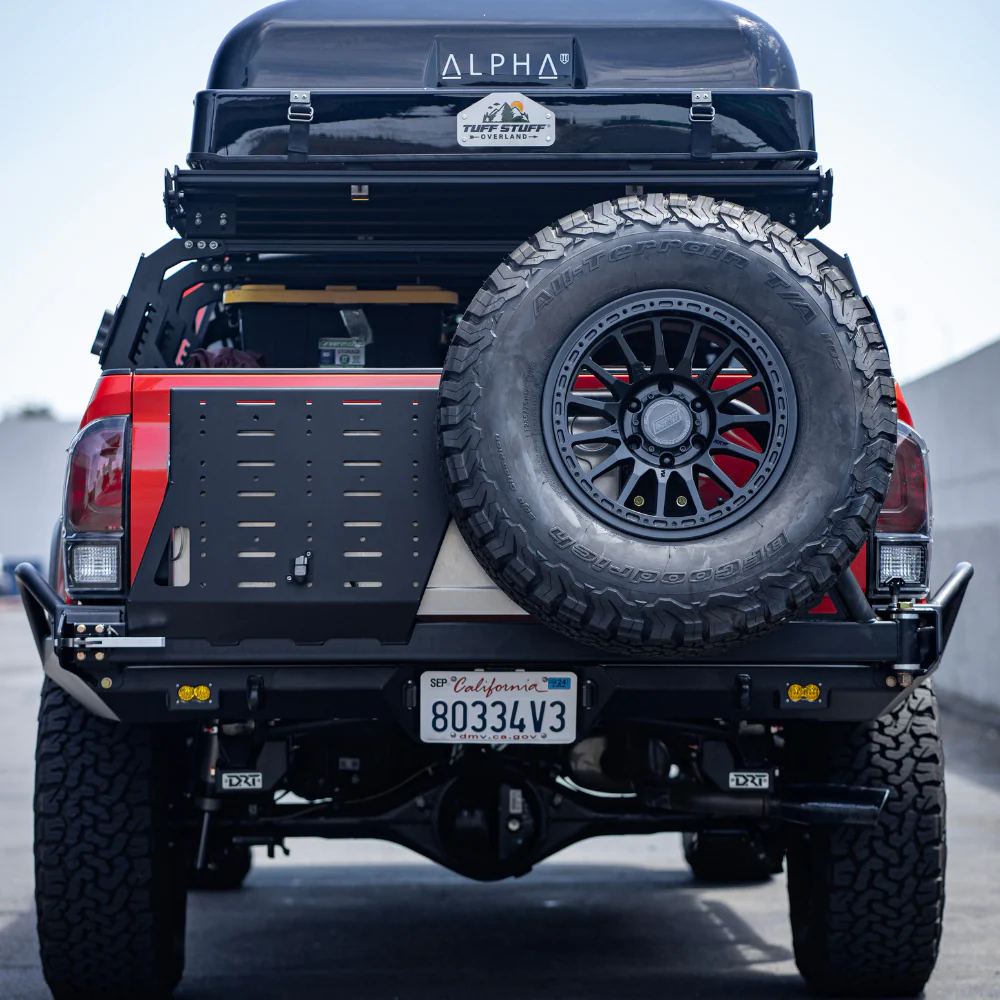

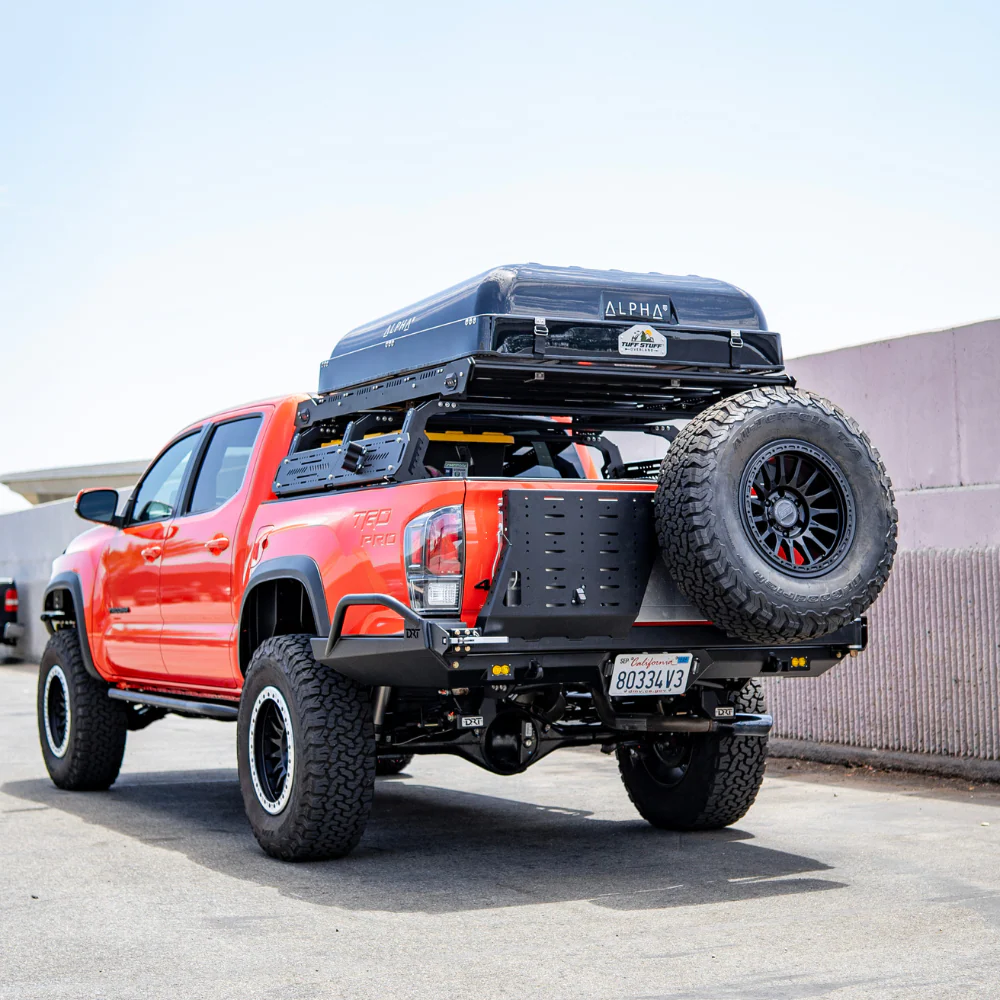

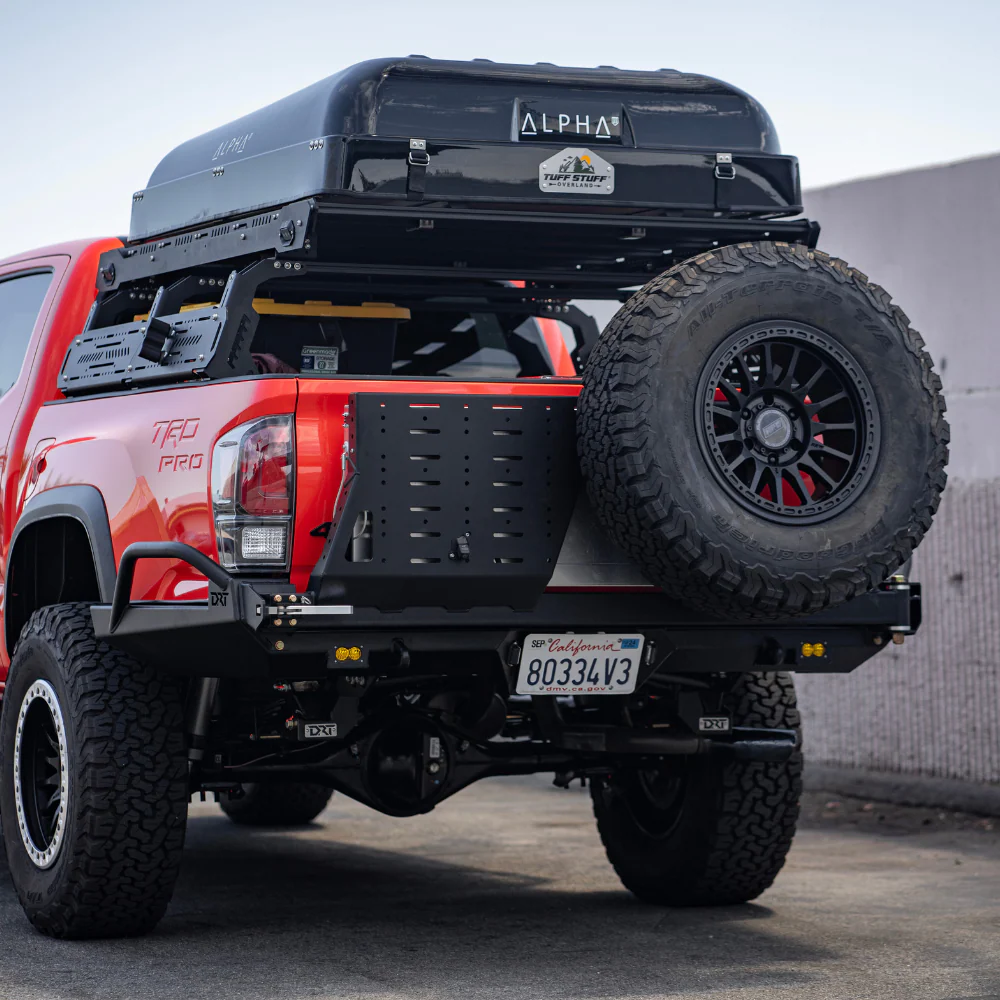

Bolt On Tire Carrier / Swing Out – Toyota Tacoma
Form, Function, and the DRT Standard

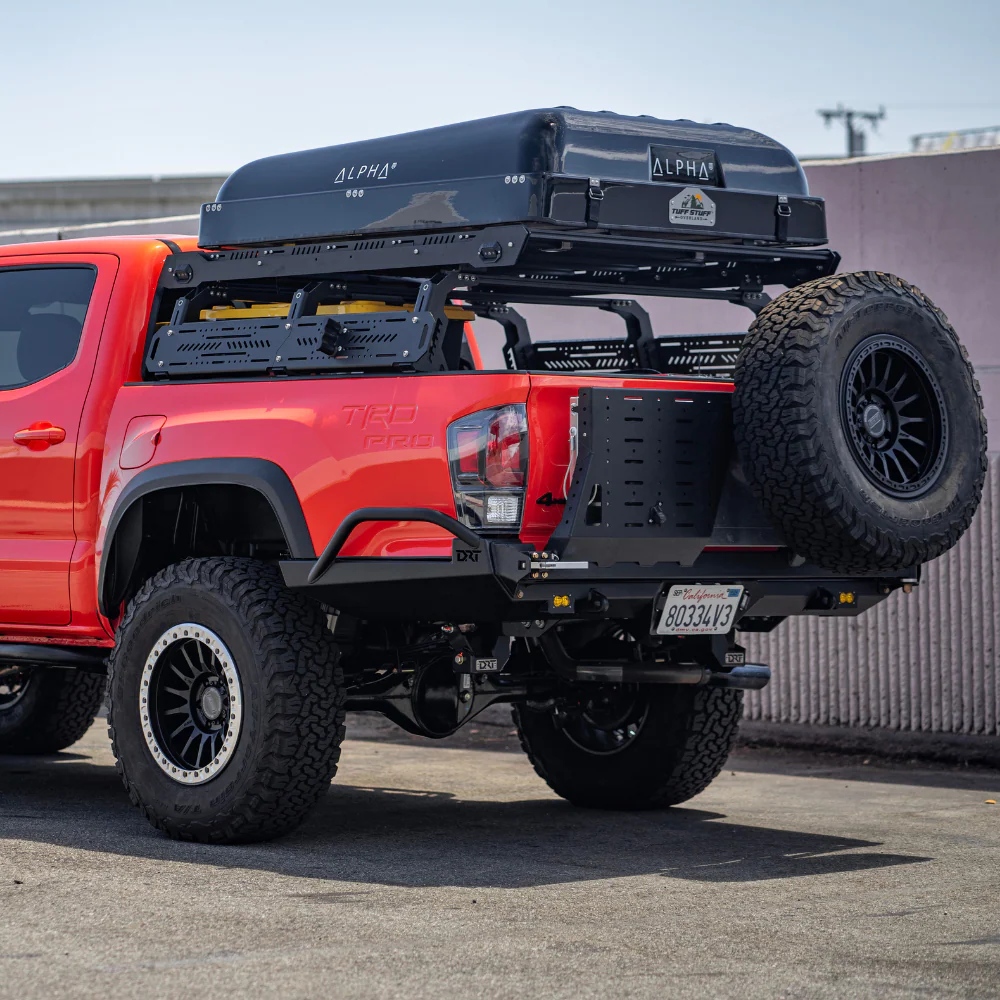

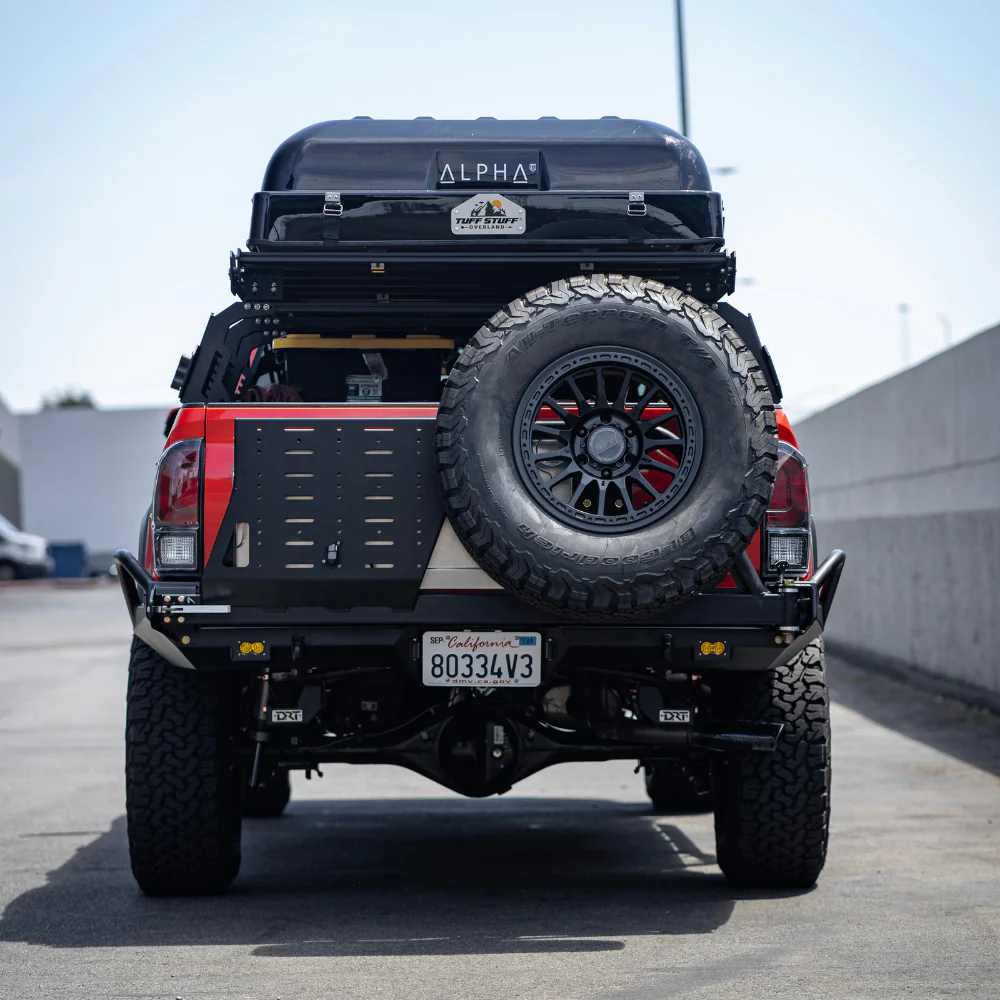

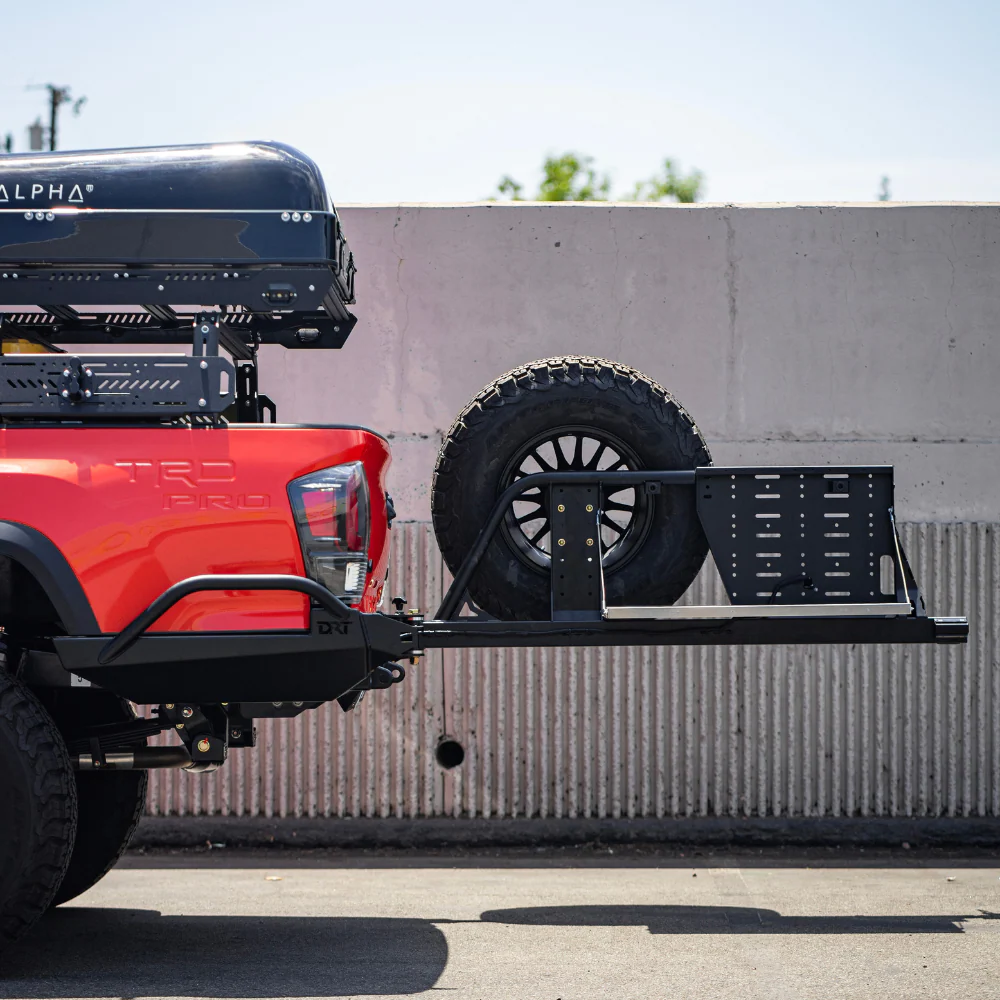

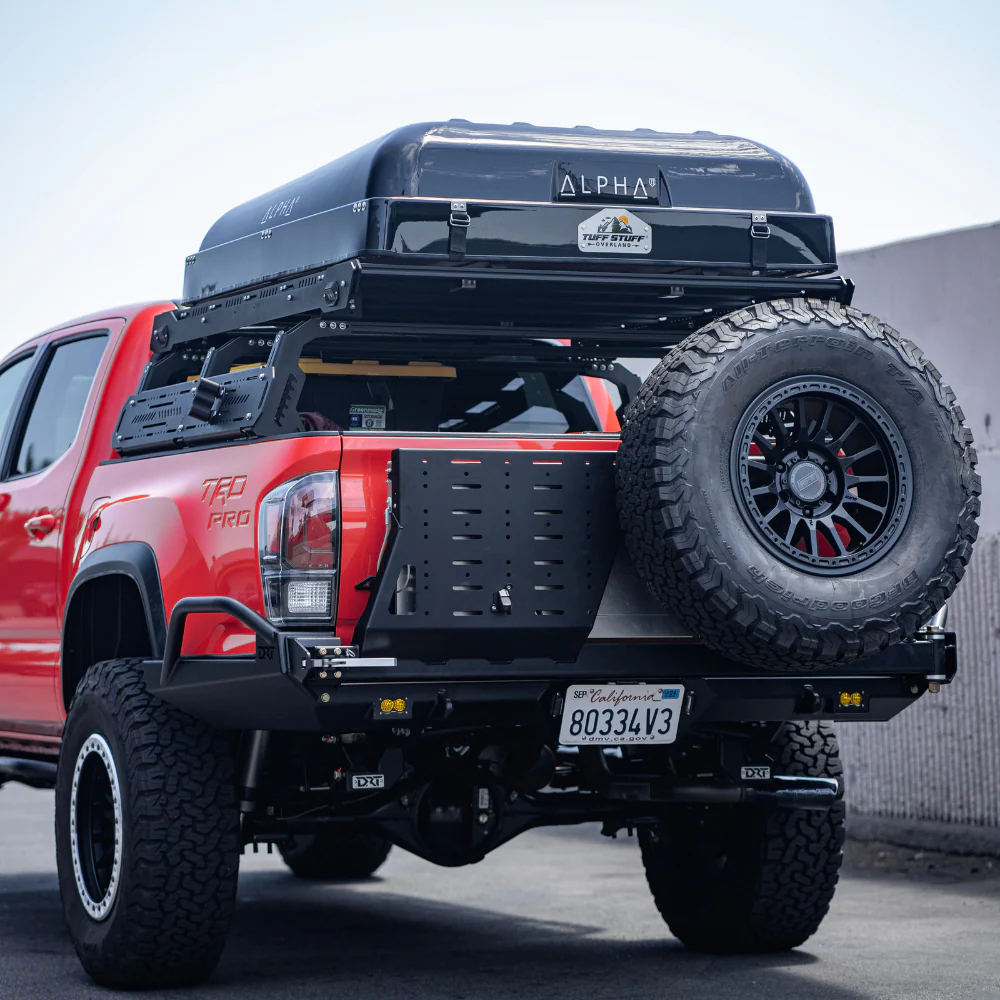

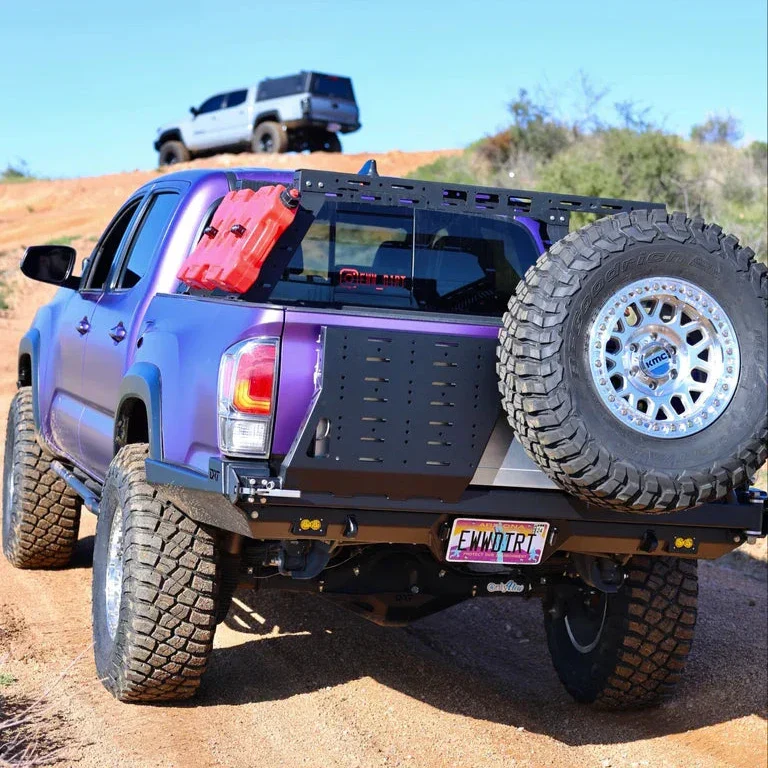

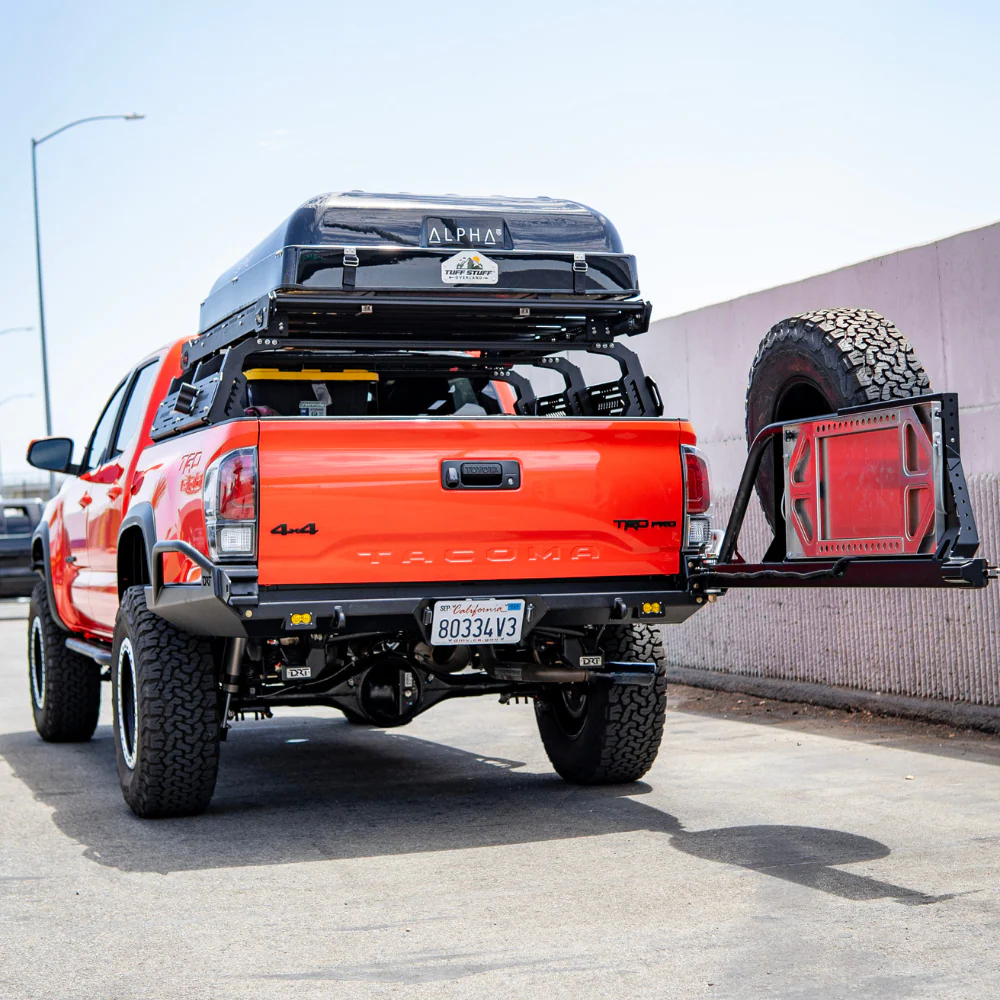

Introducing the DRT Fabrication Bolt On Tire Carrier / Swing Out, engineered to dramatically increase your Tacoma’s versatility. Designed with both form and function in mind, this swing-out provides a secure way to mount a spare tire along with essential gear such as a jack, fuel or water cans, rotopax, tools, and more. Every detail has been methodically designed.

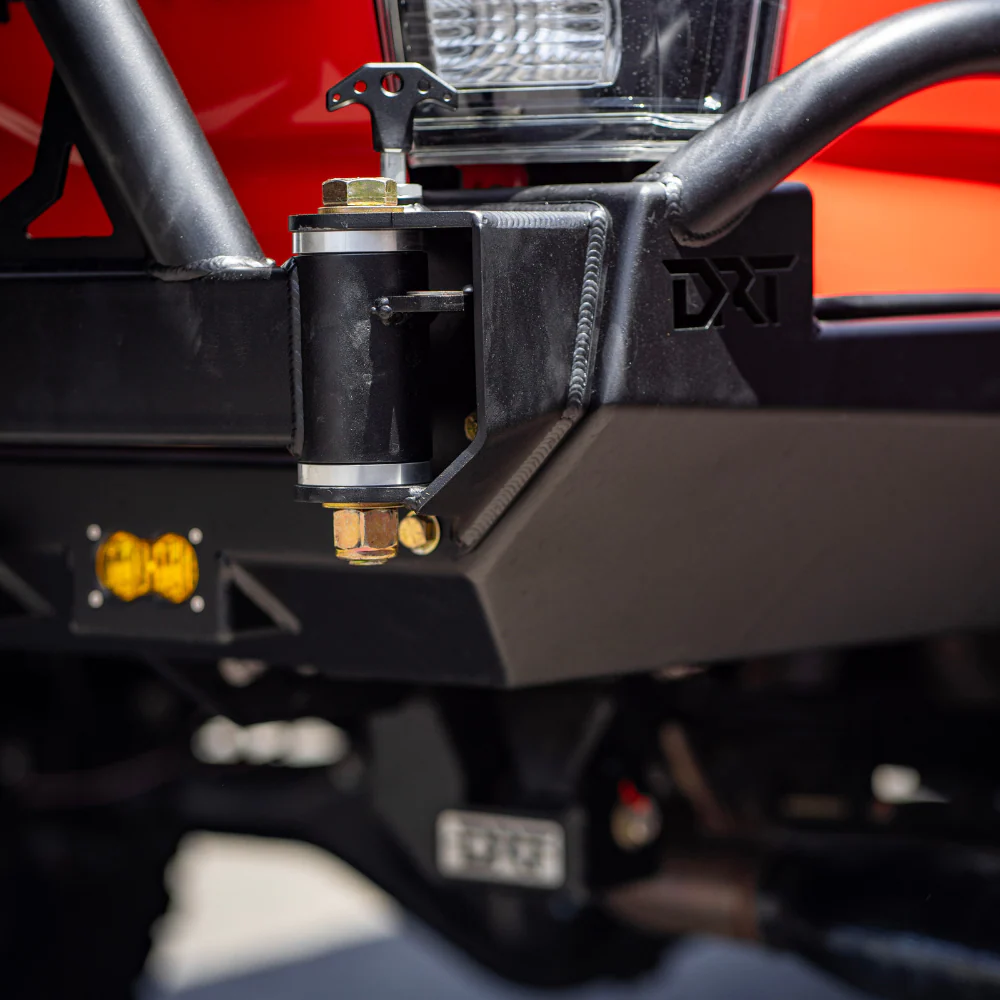

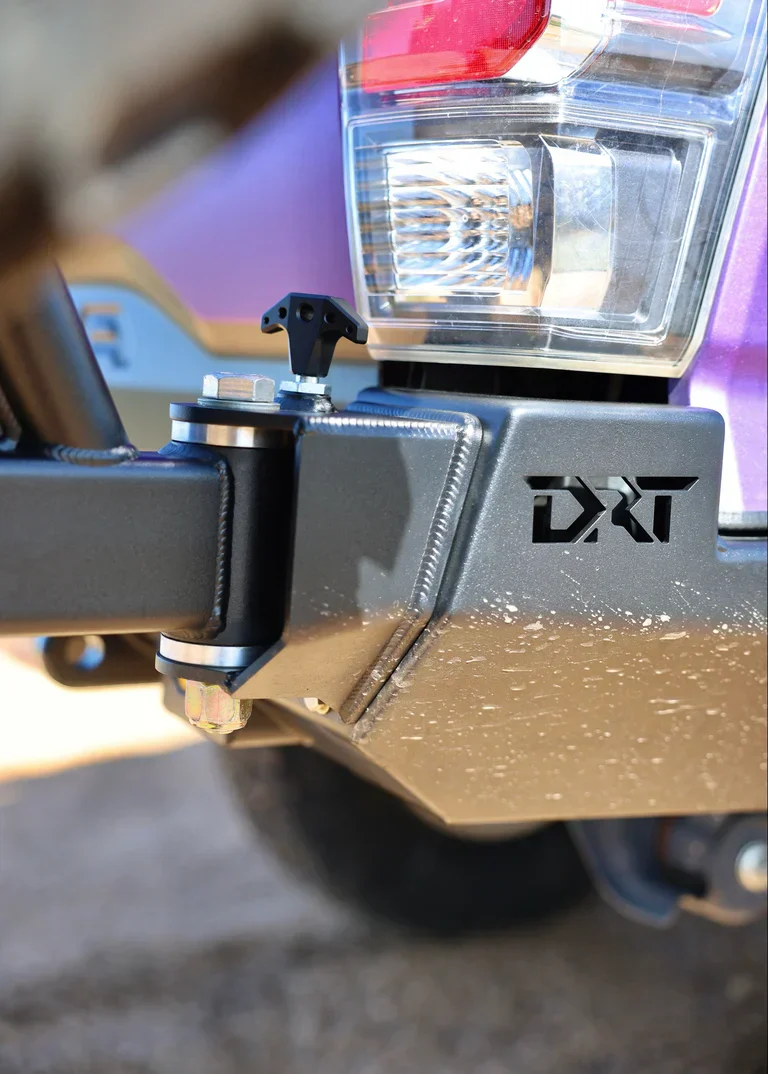

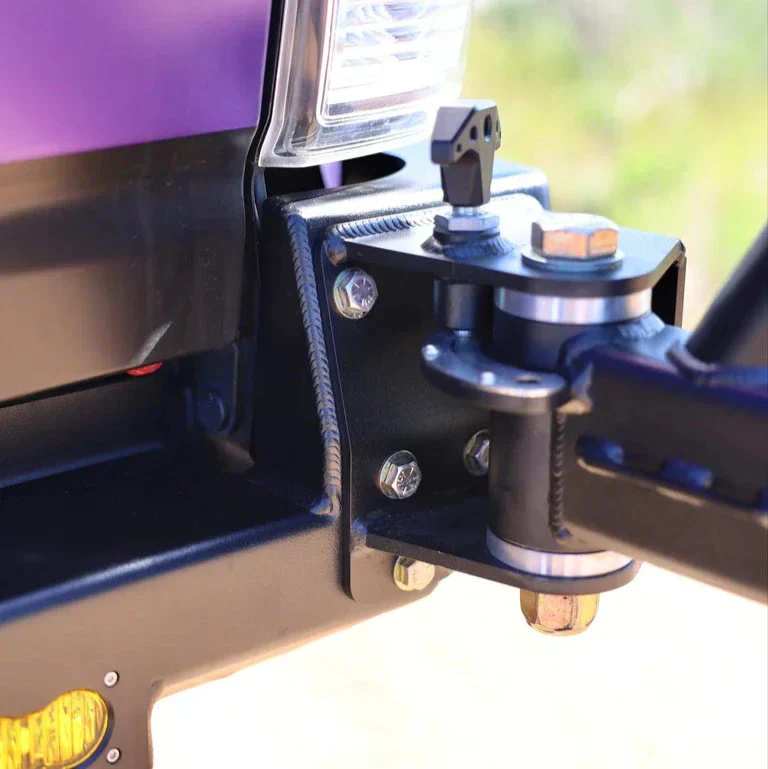

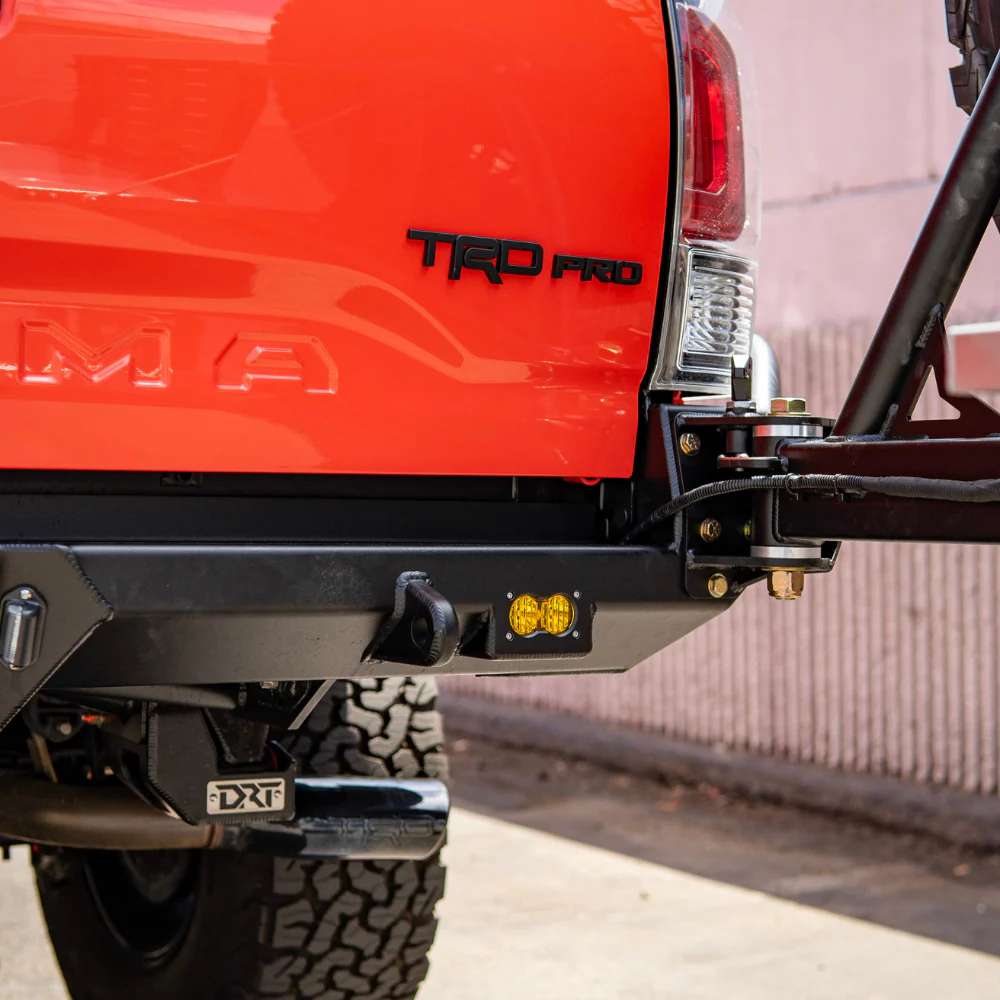

Hinge Design
The swing-out hinge uses dual COM16 uniball bearings with aluminum misaligns and O-rings for durability, smooth operation, and resistance to water and debris. This ensures a quiet and long-lasting performance, no more dealing with cheap wheel bearings packed full of grease.

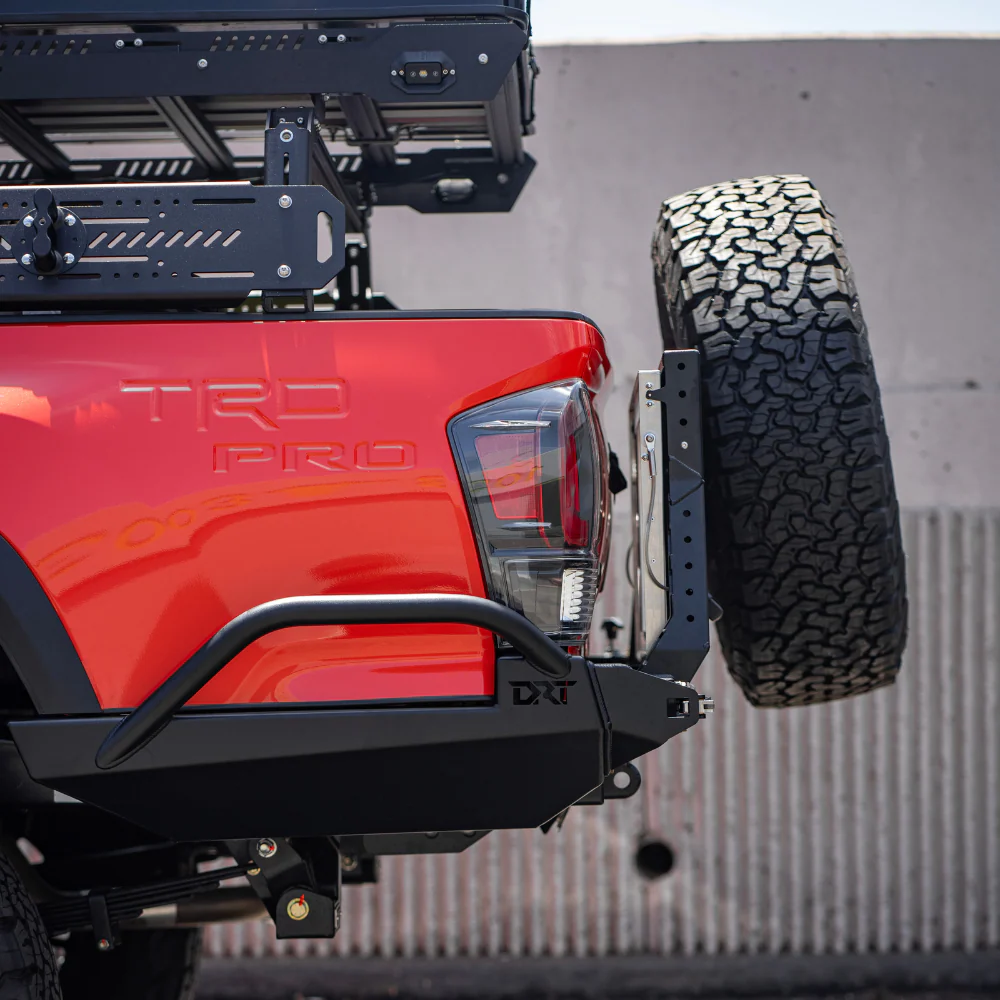

Strong, Secure Mounting
- Each carrier is attached to the bumper with five ⅜” Grade 8 bolts
- 100% bolt-on installation – no welding required

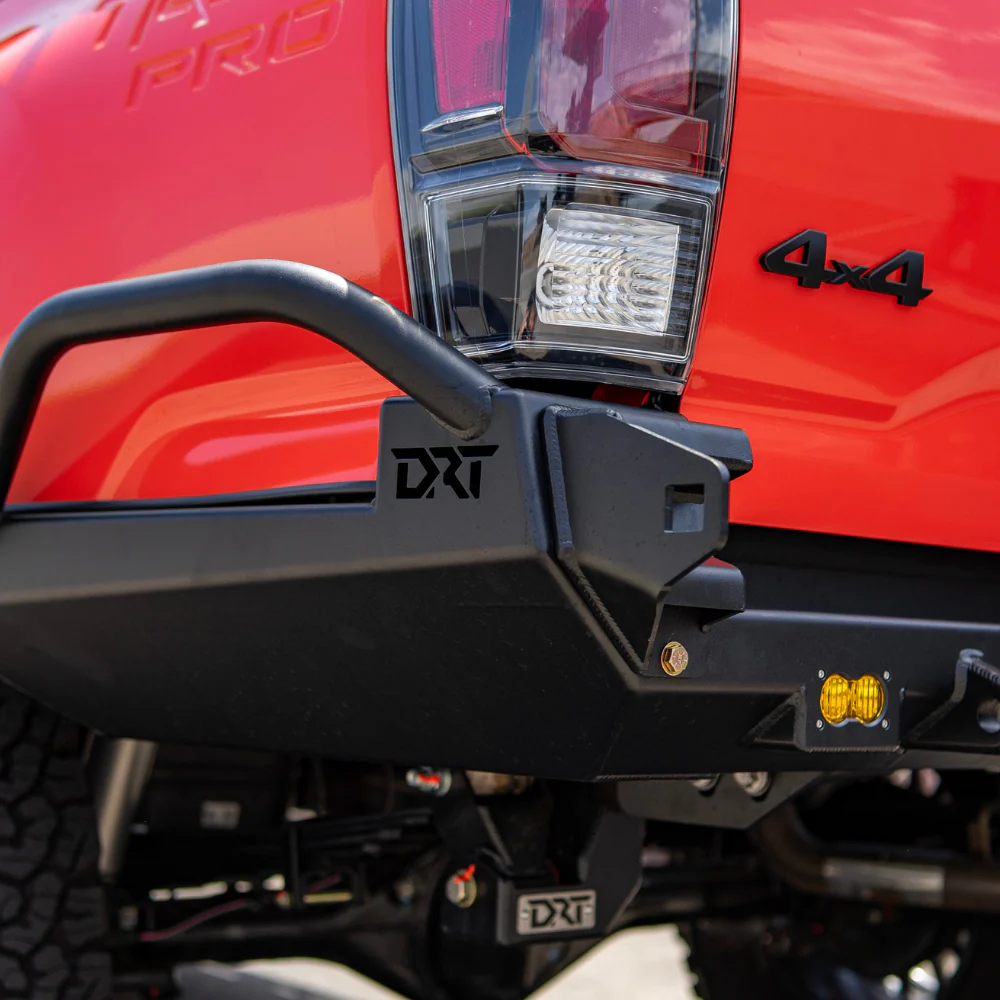

- Can be added to your DRT HC Rear Bumper at a later date
- Includes laser-cut templates for a straightforward install

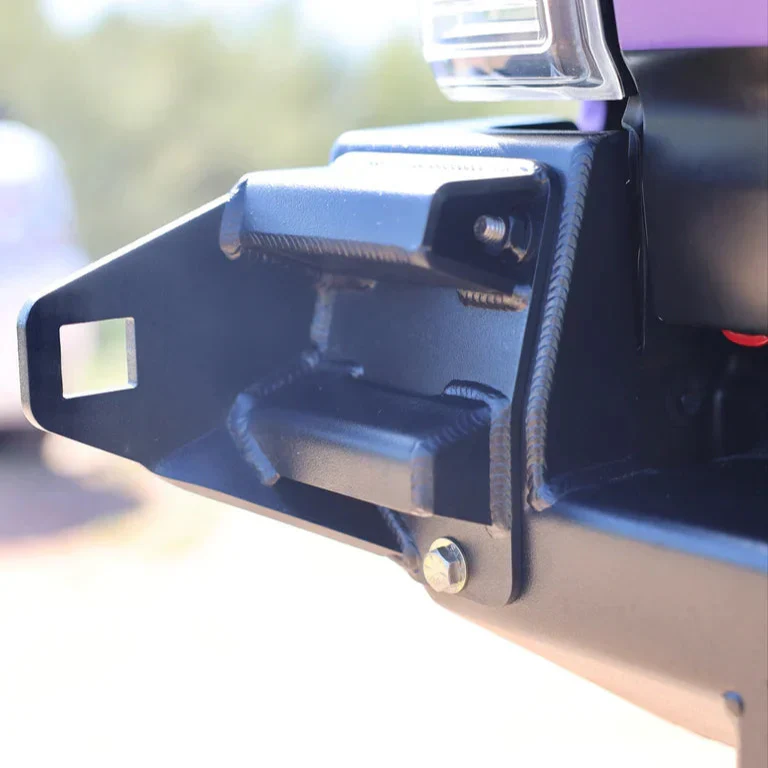

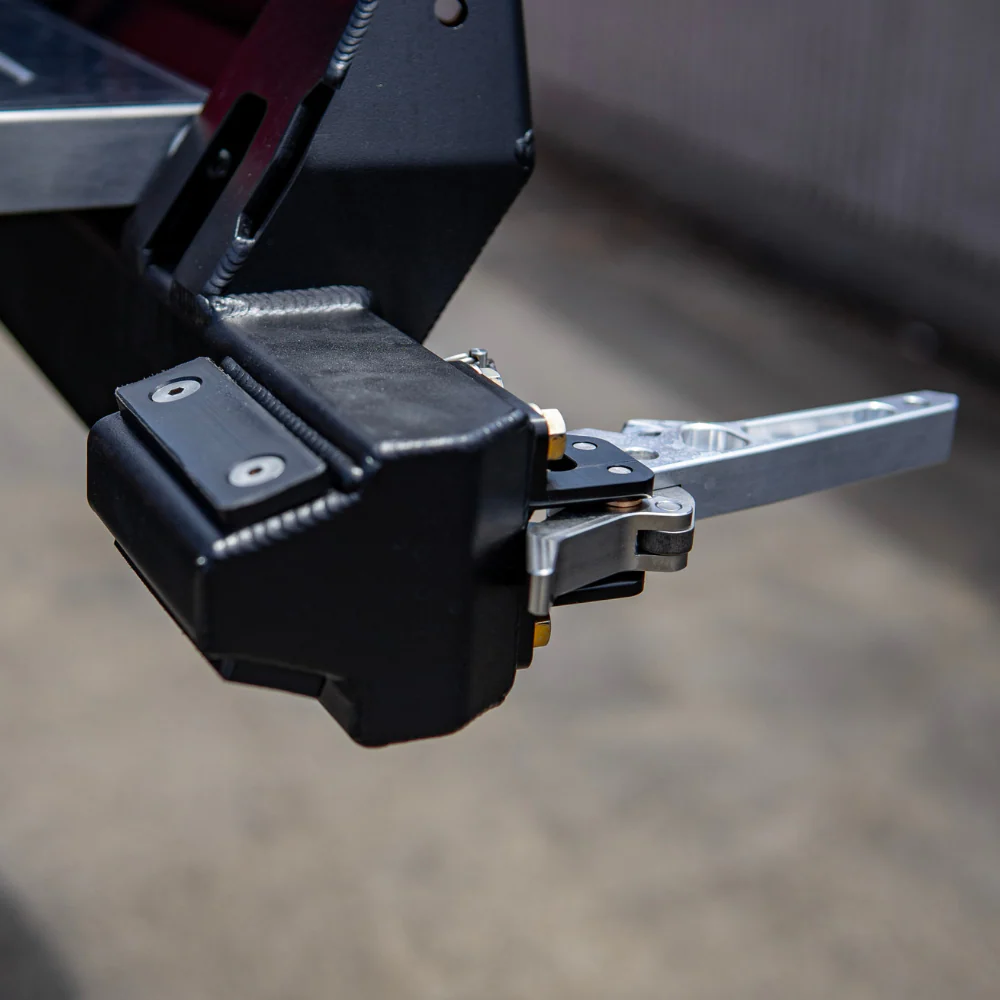

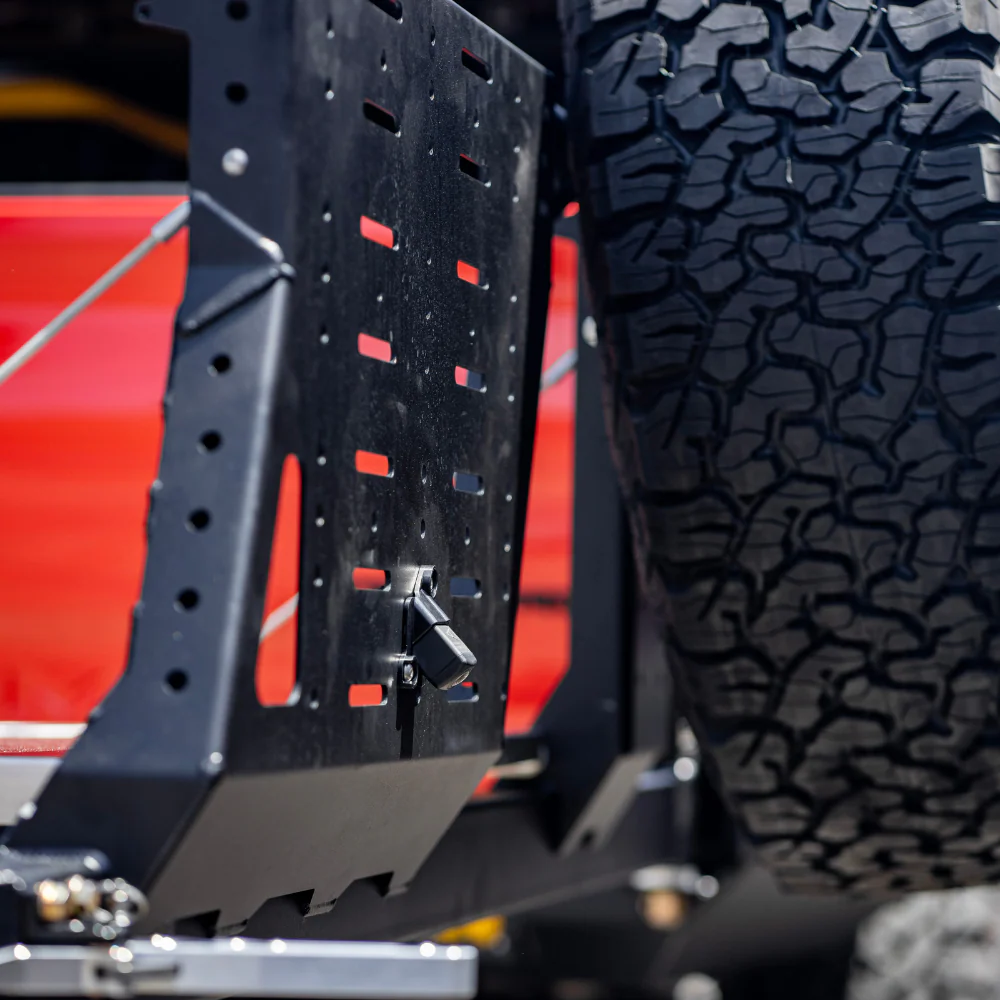

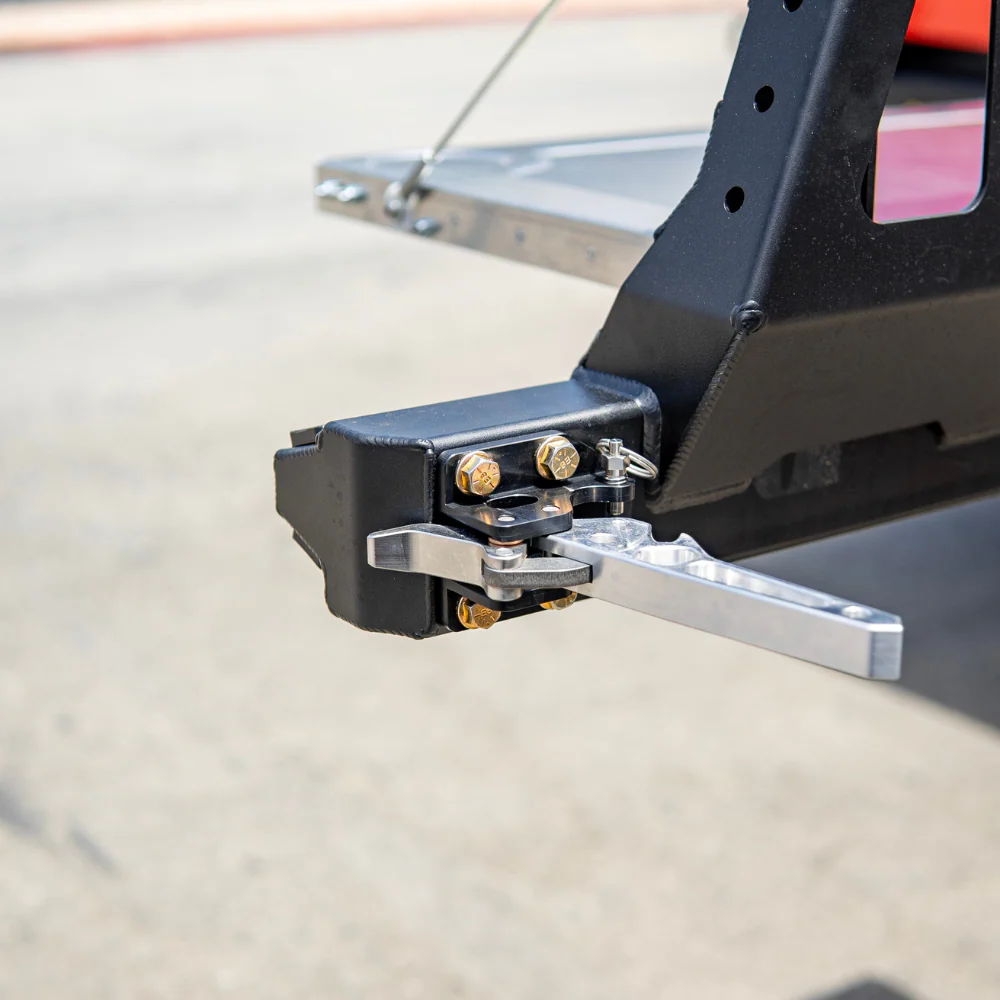

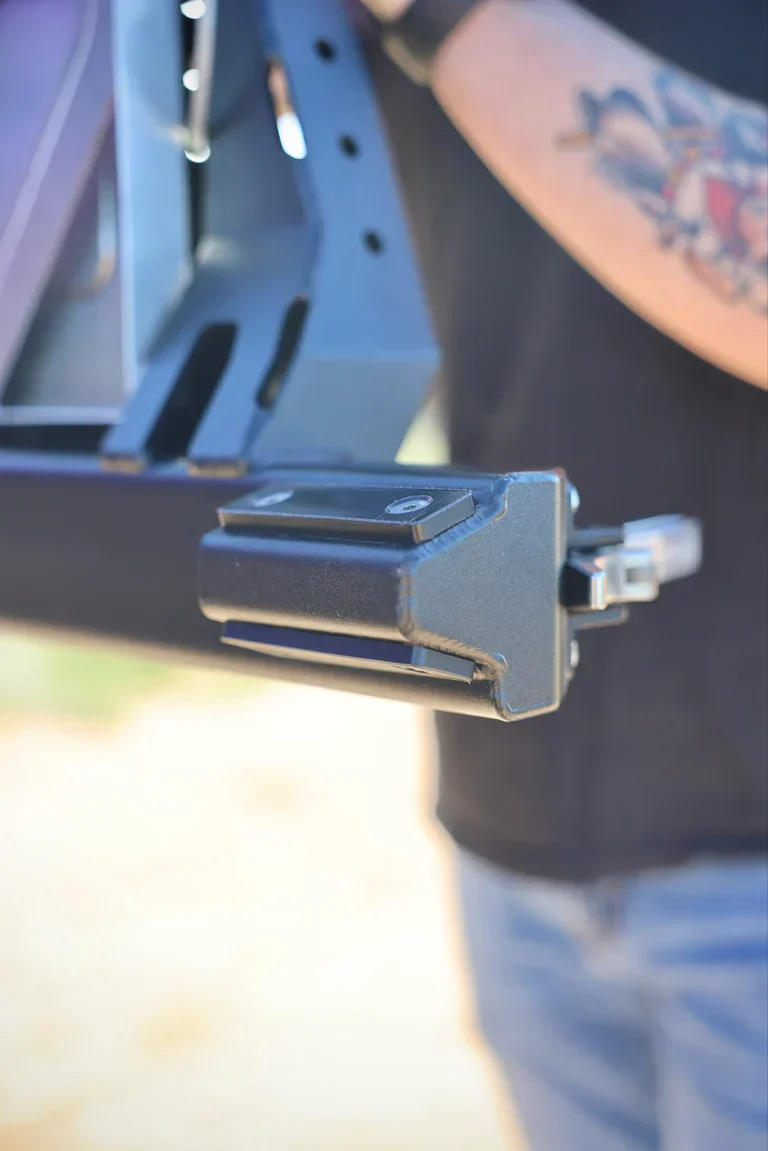

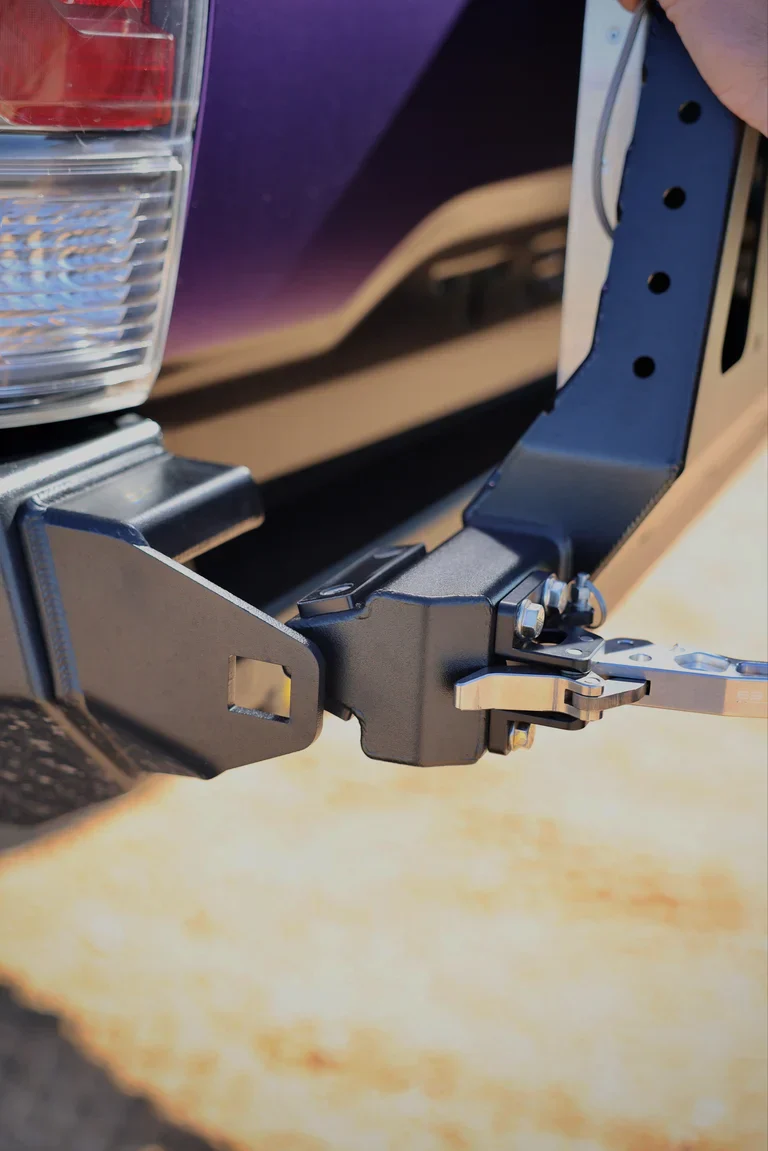

Wedge-Style Latch System
- Uses CNC-machined black UHMW wedge pads to reduce wear and noise

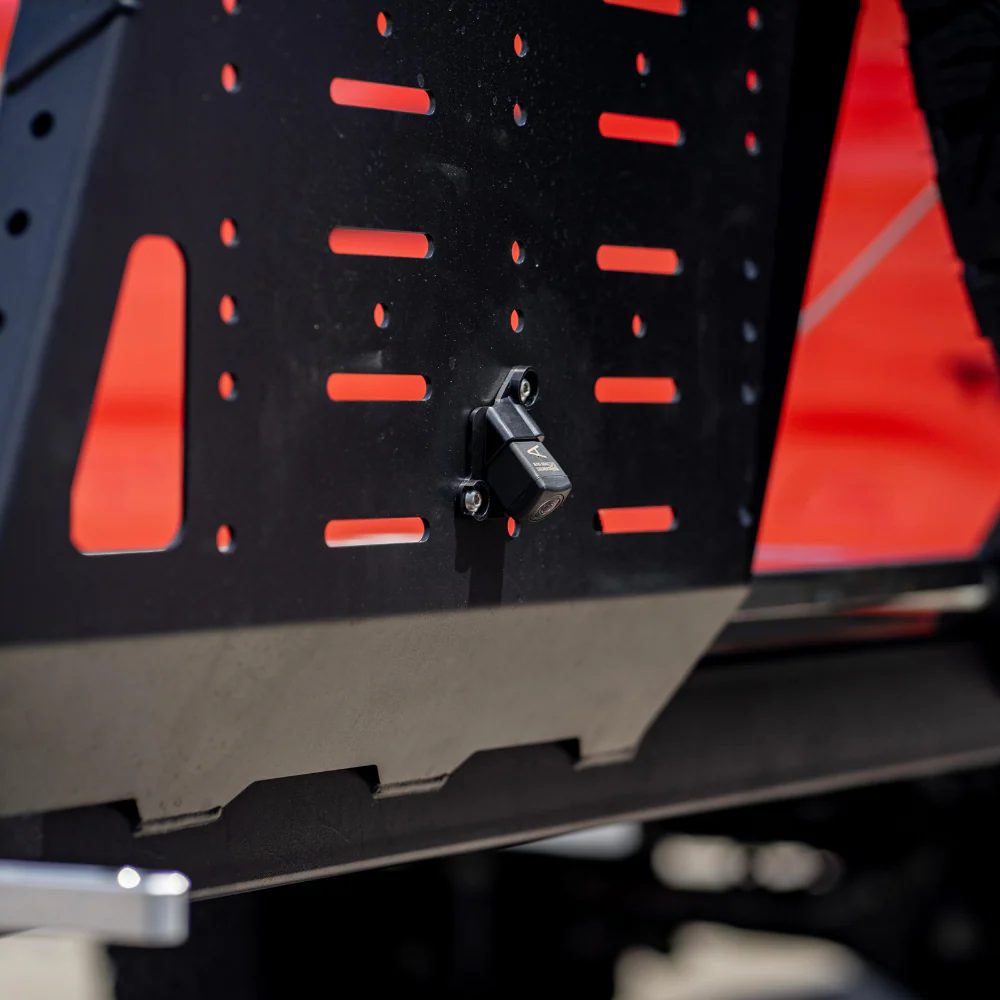

- Comes standard with a lockable billet e3 Machine compression latch (black/raw combo)

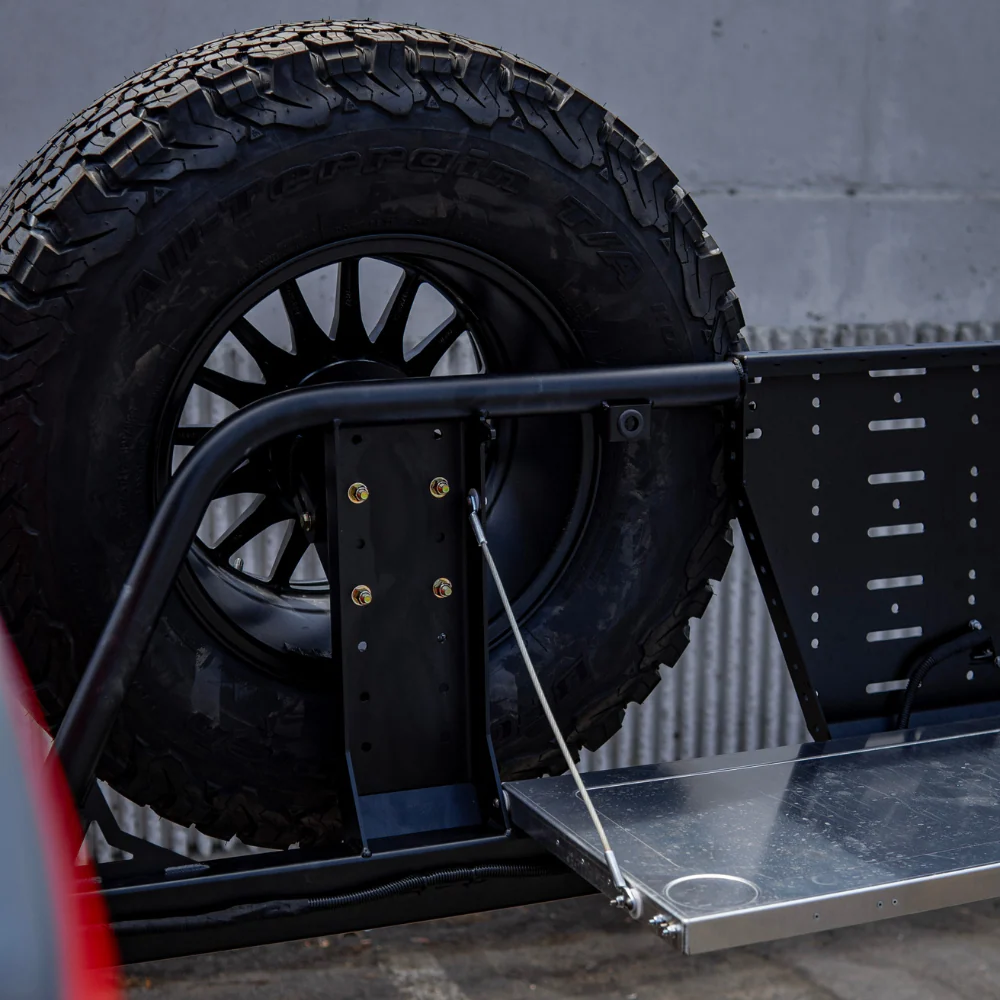

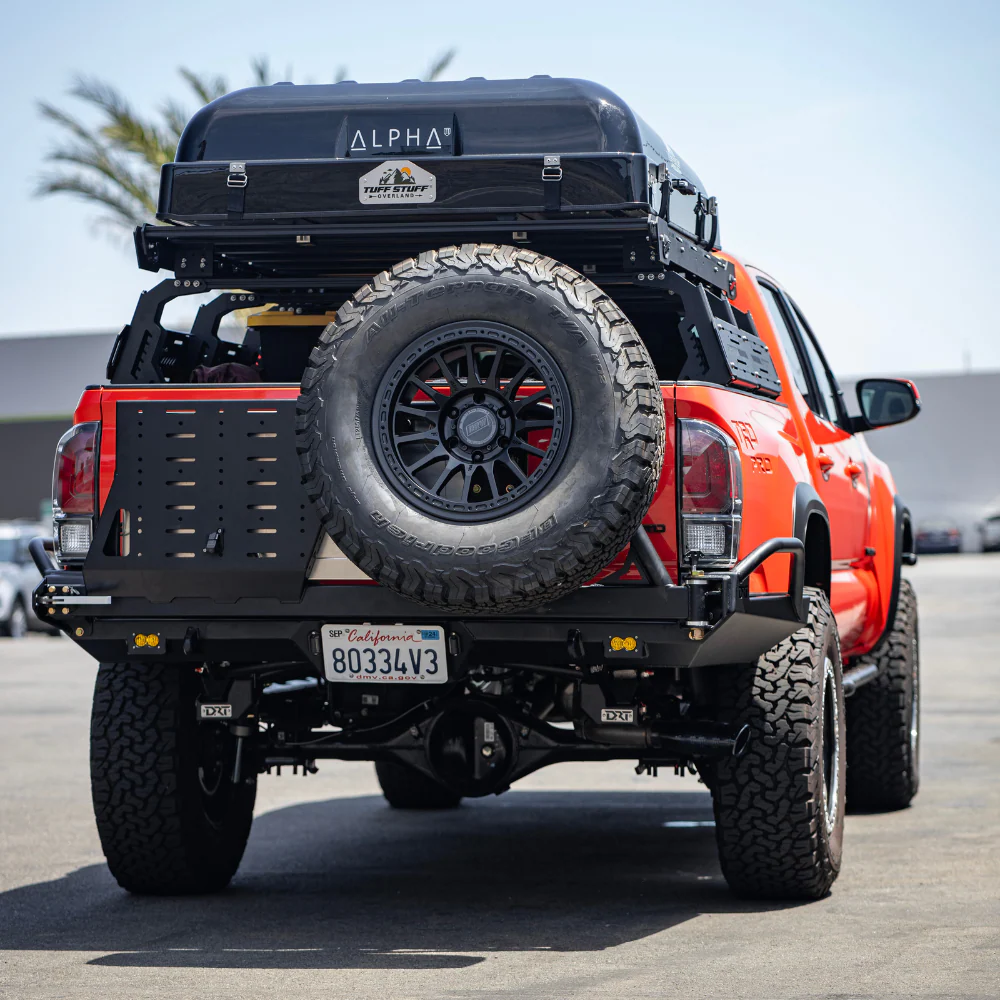

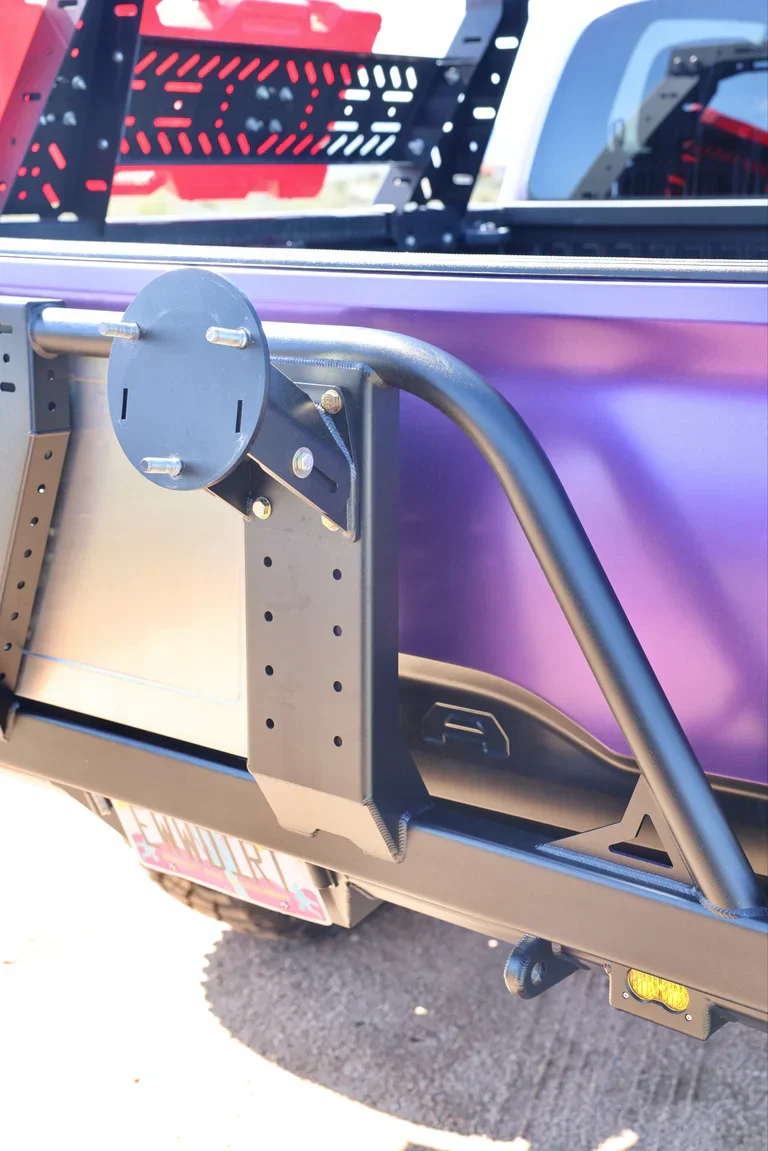

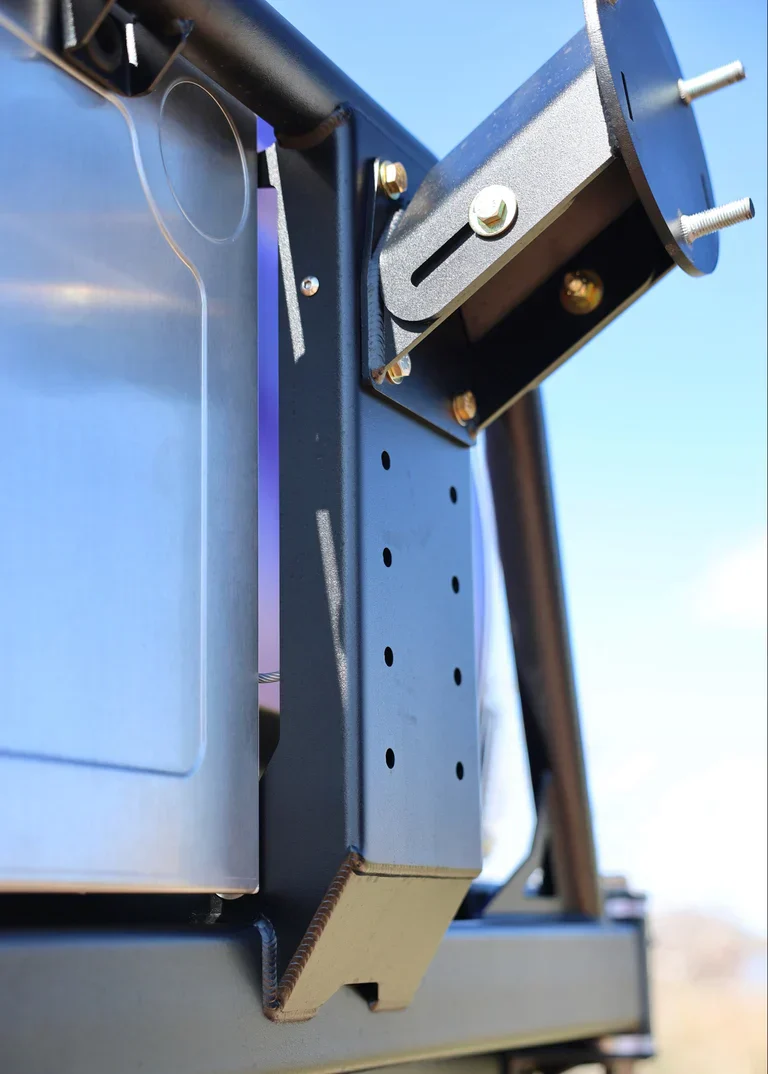

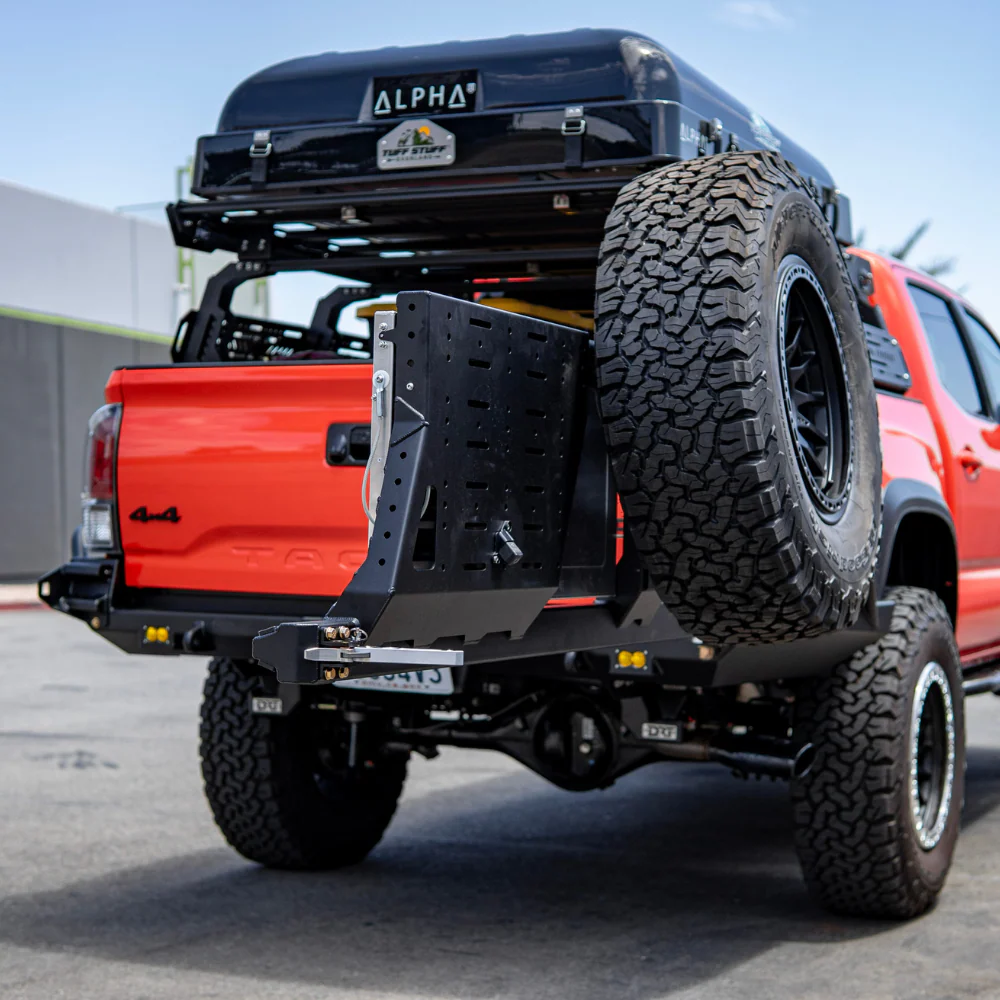

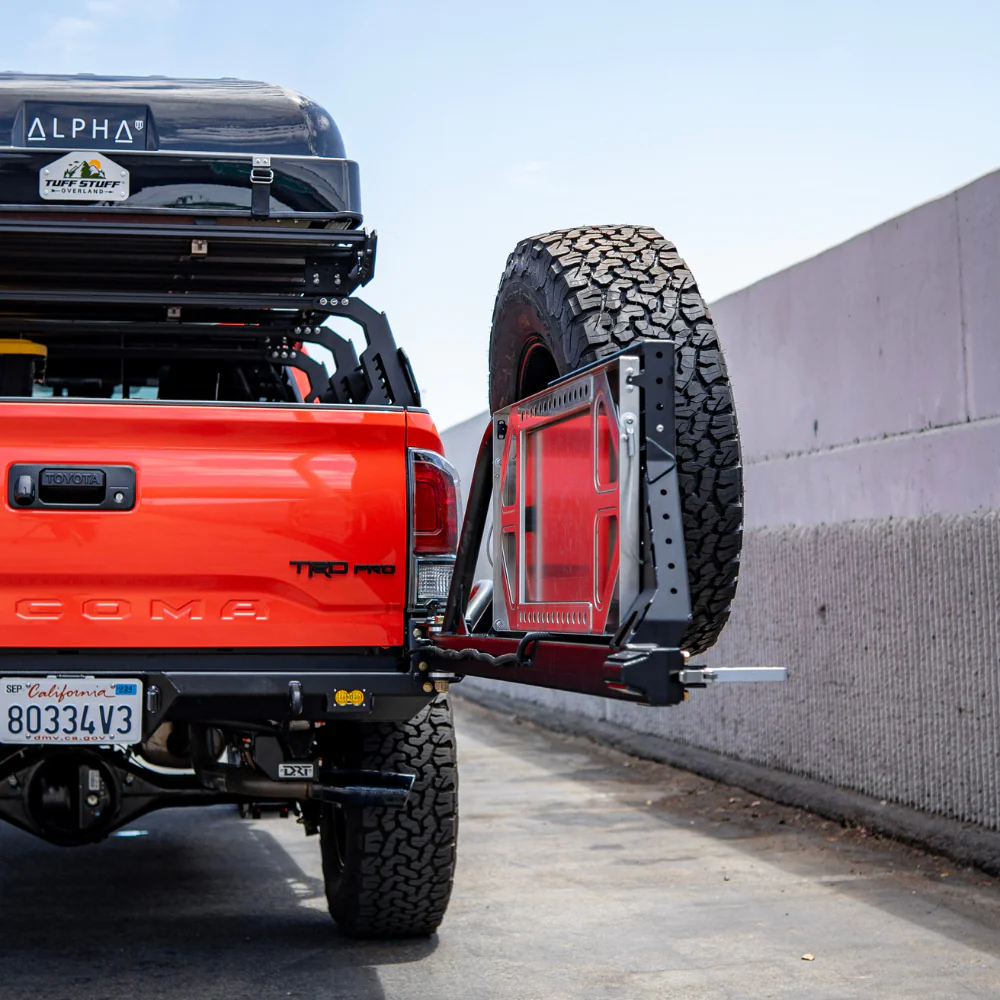

Adjustable Spare Tire Mount
- Bolt-on mount included
- Angled for improved ground clearance
- Adjustable to fit a range of tire widths and wheel offsets (0 to -36 offset)
- Designed around a 35” tire (as shown in photos)

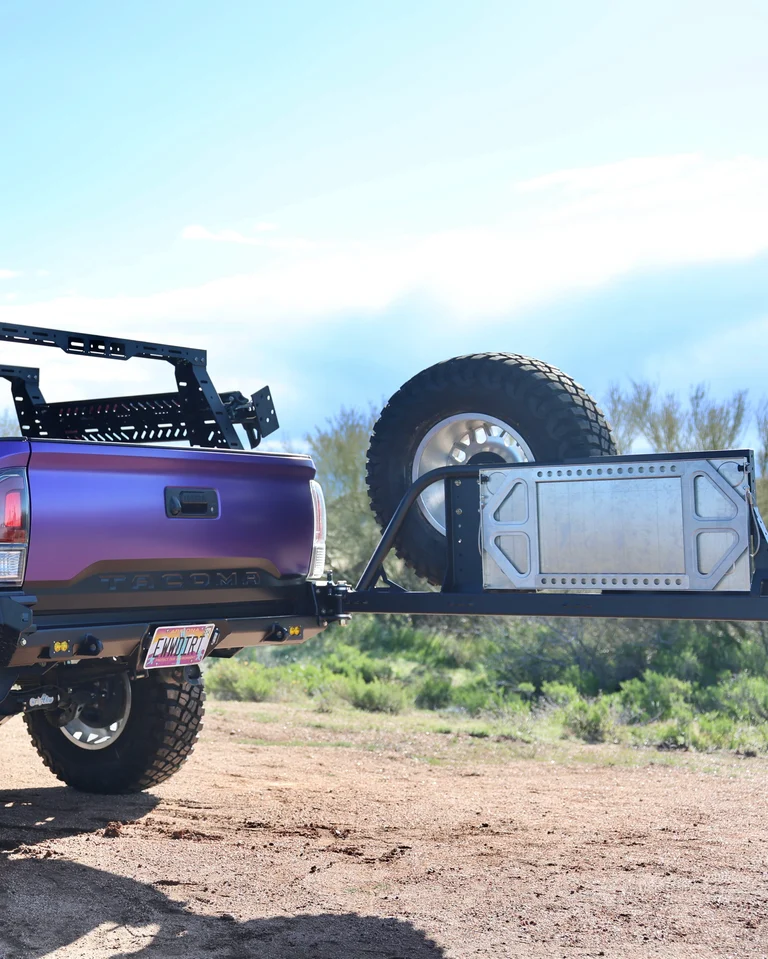

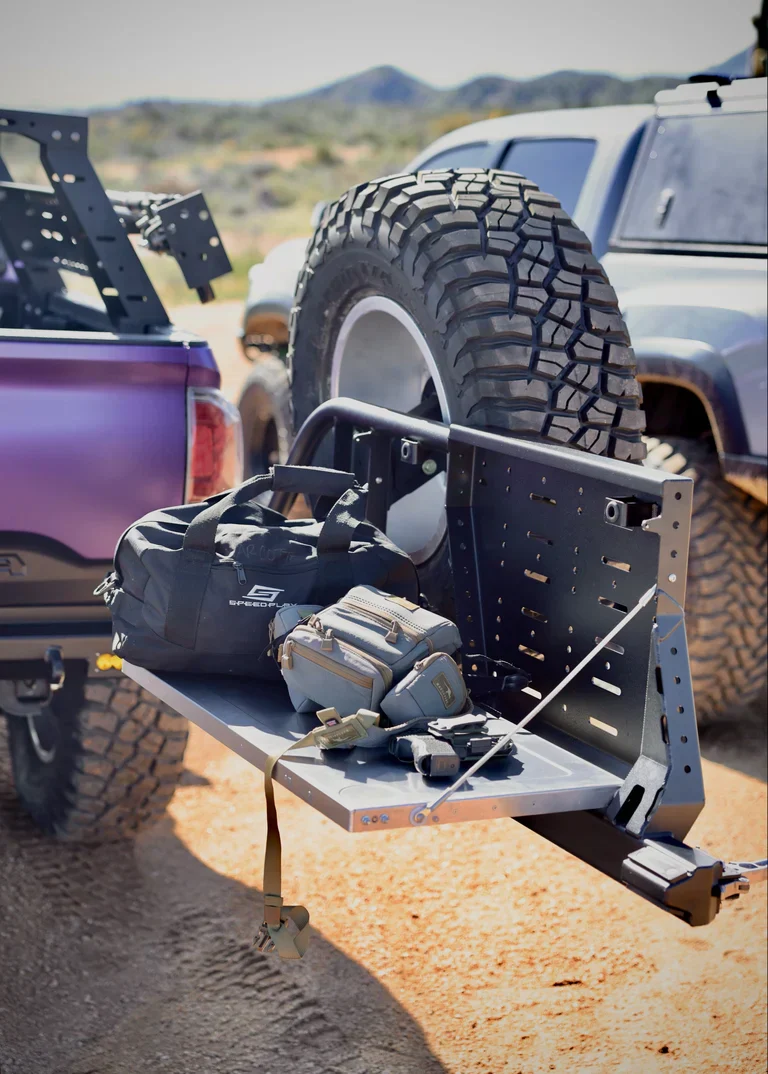

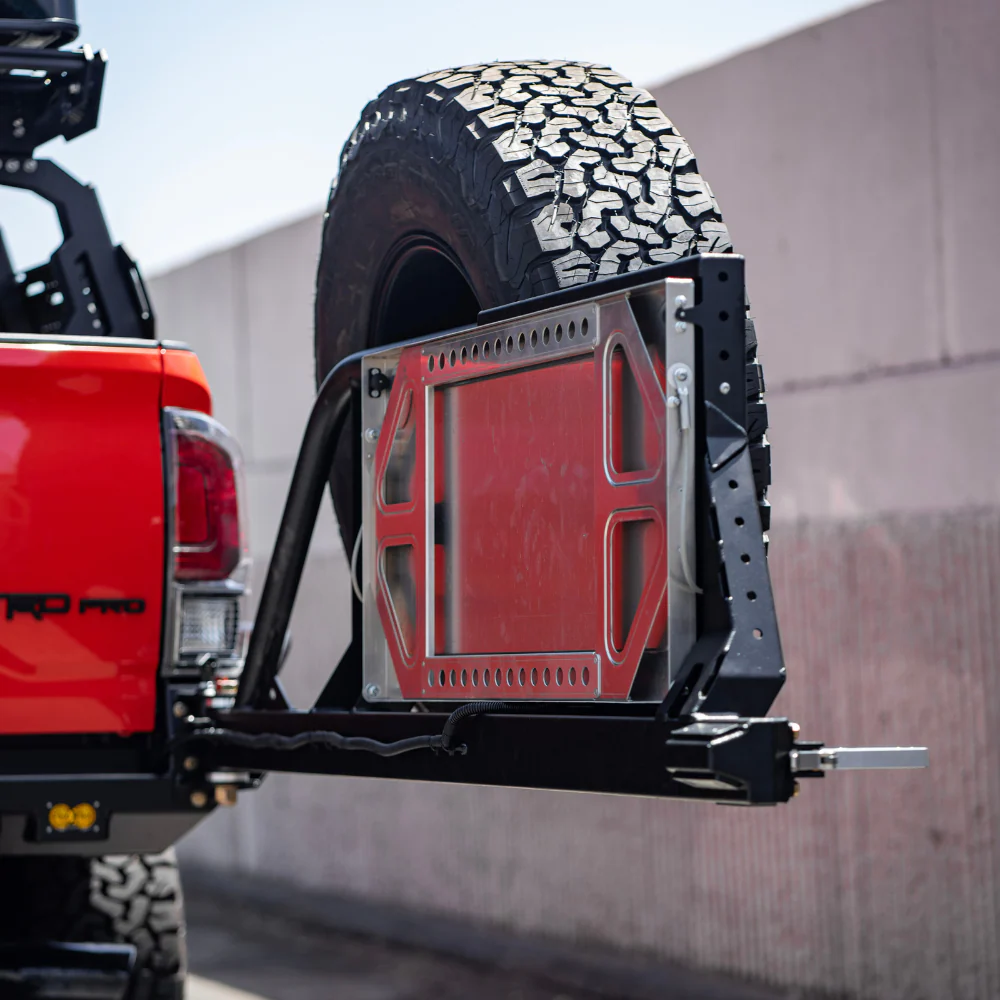

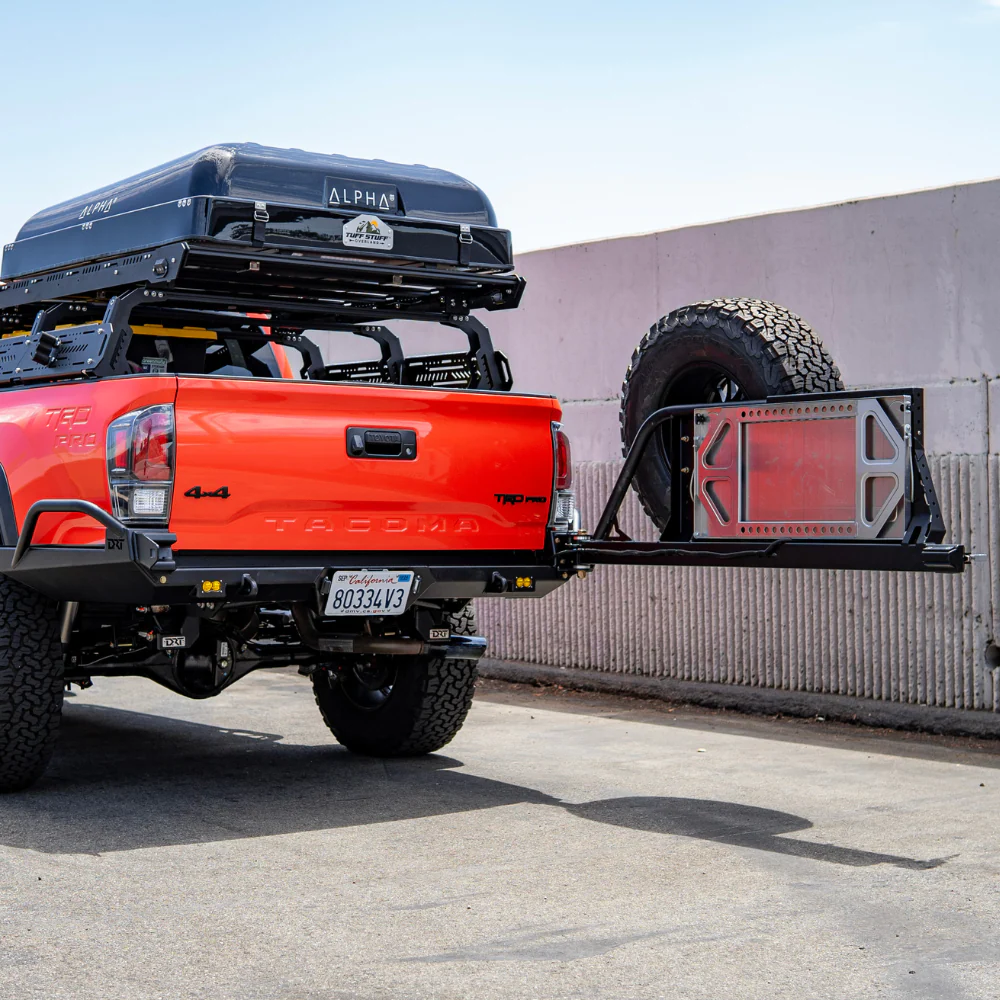

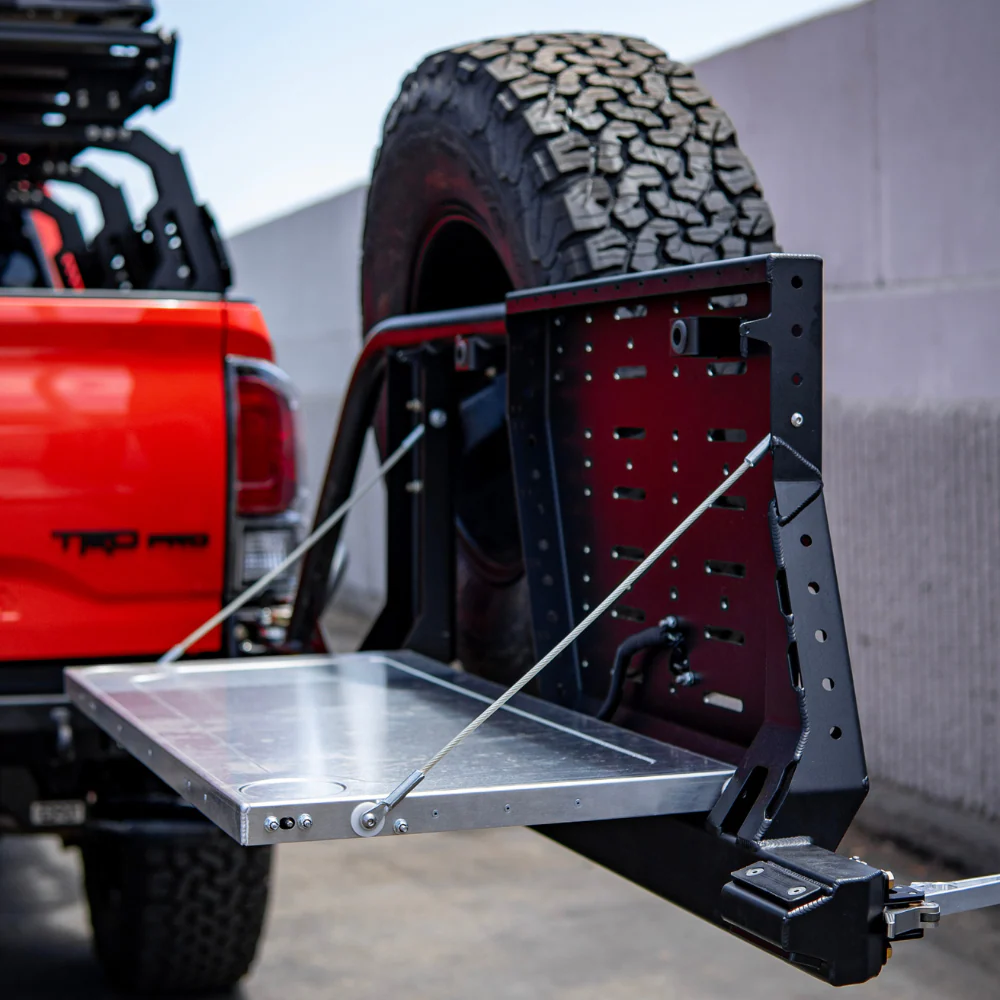

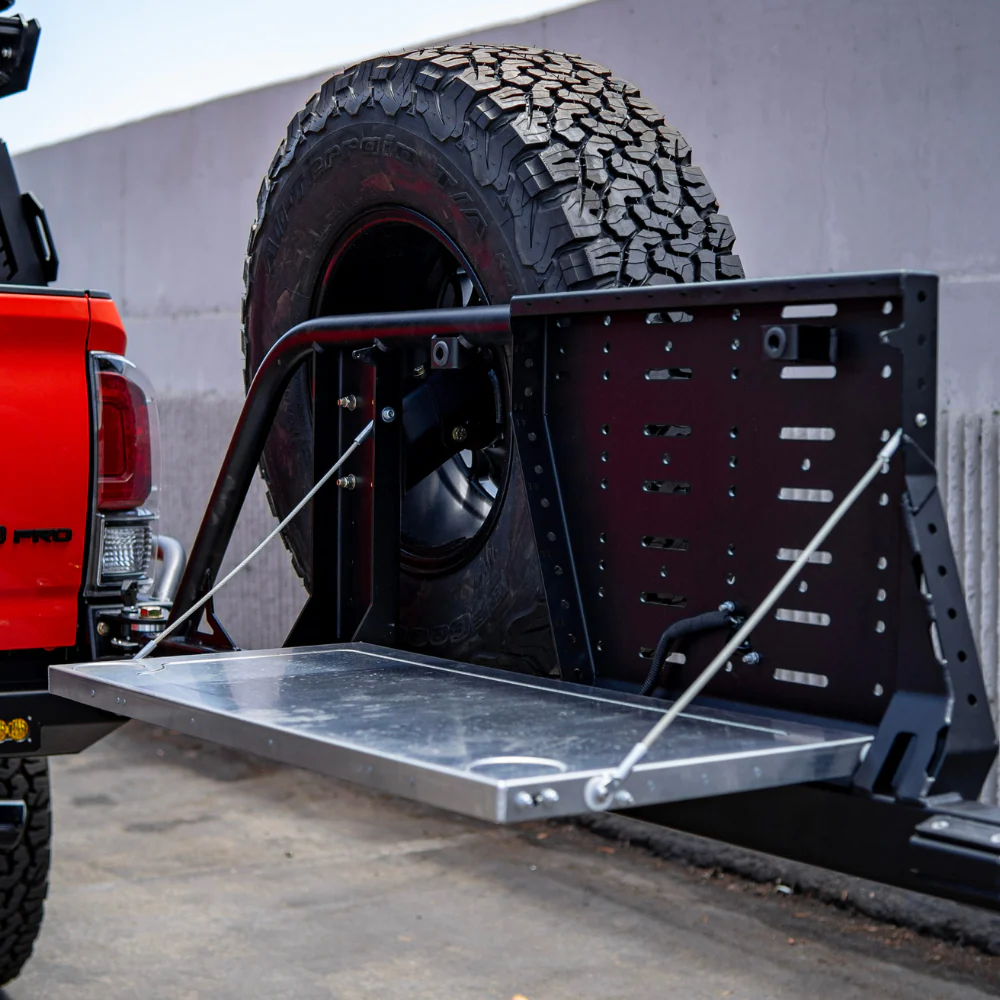

Built-In Fold-Down Table

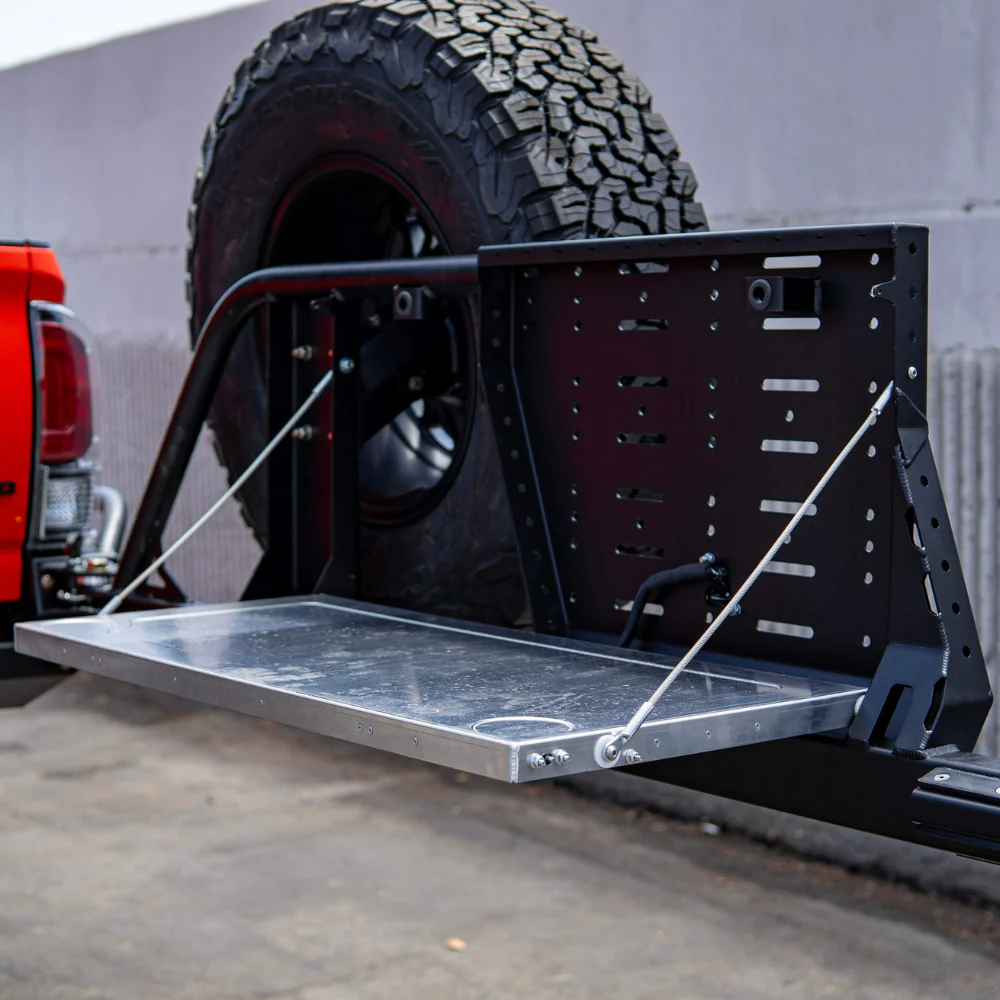

When opened, the swing-out reveals a massive CNC bead-rolled aluminum table—perfect for cooking, organizing tools, or staging gear on the trail.

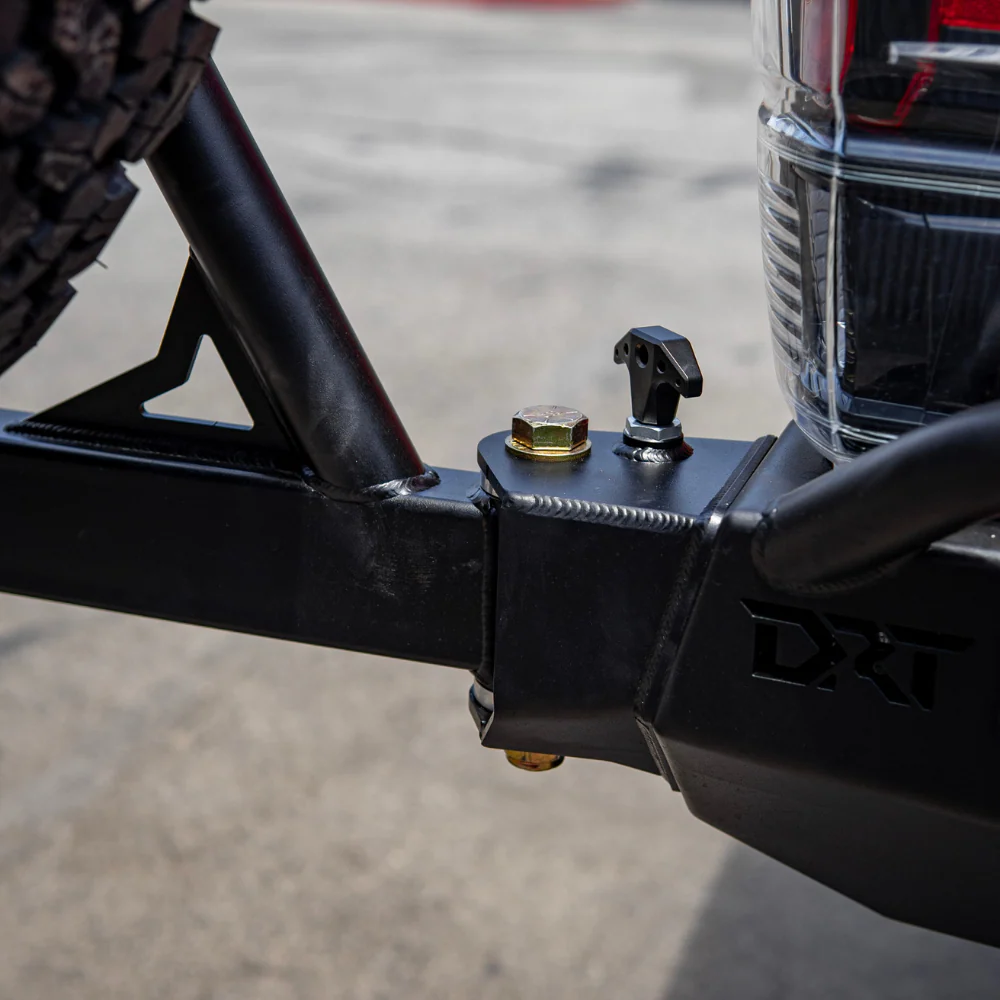

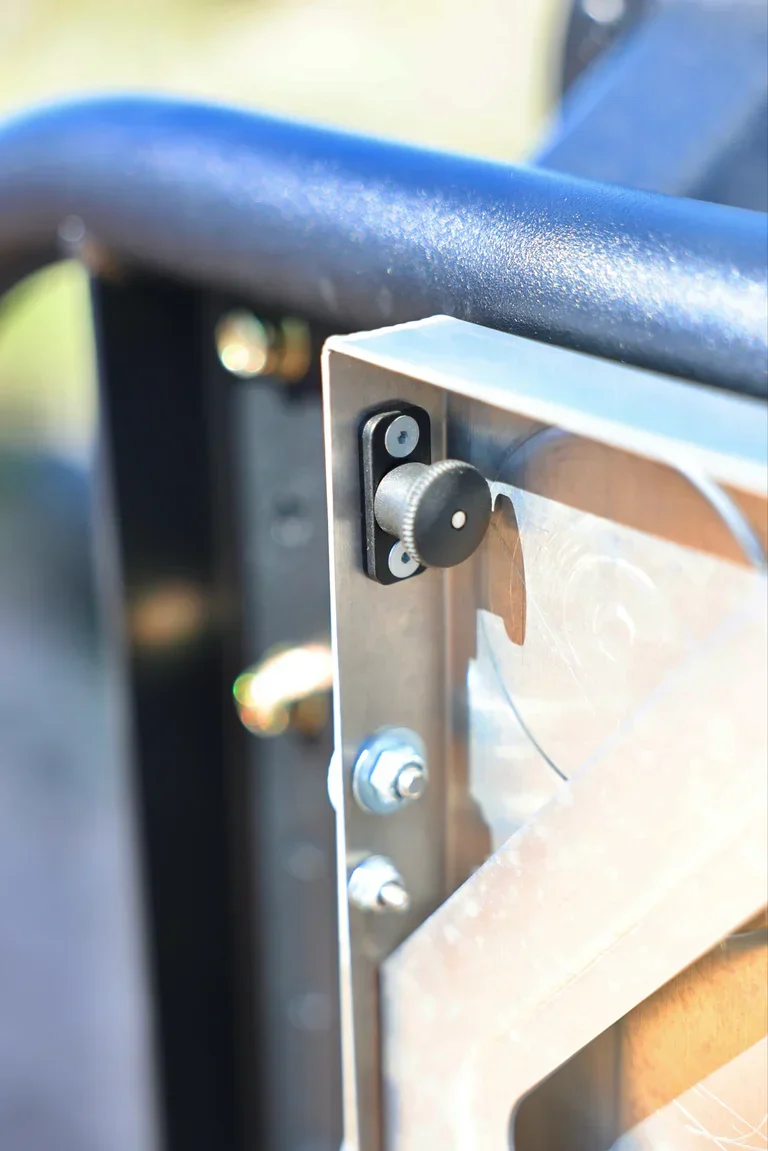

Billet Pull Pin with Multiple Positions
- Pull pin includes 2 locking positions: 90°, and 130° open
- Stainless steel slide plate prevents powder coat wear during repeated use
Specs & Features
- 100% bolt-on
- Dual uniball hinge
- Machined UHMW wedge pads
- Billet e3 Machine compression latch
- CNC bead-rolled aluminum table
- 3/16” steel base spare tire mount
- Adjustable tire mount (0 to -36 offset)
- Billet pull pin w/ 2 positions (90°, 130°)
- Stainless steel pin slide plate
- Weight: ~85 lbs
- Ships raw (powder coating not included)
Shipping & Lead Time
Estimated lead time: 8–10 weeks
- Ships via freight
- Flat rate shipping applies only to the lower 48 states
- If ordered separately, your bumper will ship once the swing-out is complete so both arrive together
Why DRT?
This is, without question, the highest-quality swing-out on the market. Where most companies build as cheaply as possible, every component of the DRT swing-out has been carefully engineered to perform as a unified system. From the uniball hinge to the bead-rolled table, no detail is overlooked.
