Lower Axle Shock Tab Mount For Rod End Shocks (pair)

Lower Axle Shock Tab Mount For Rod End Shocks (pair)

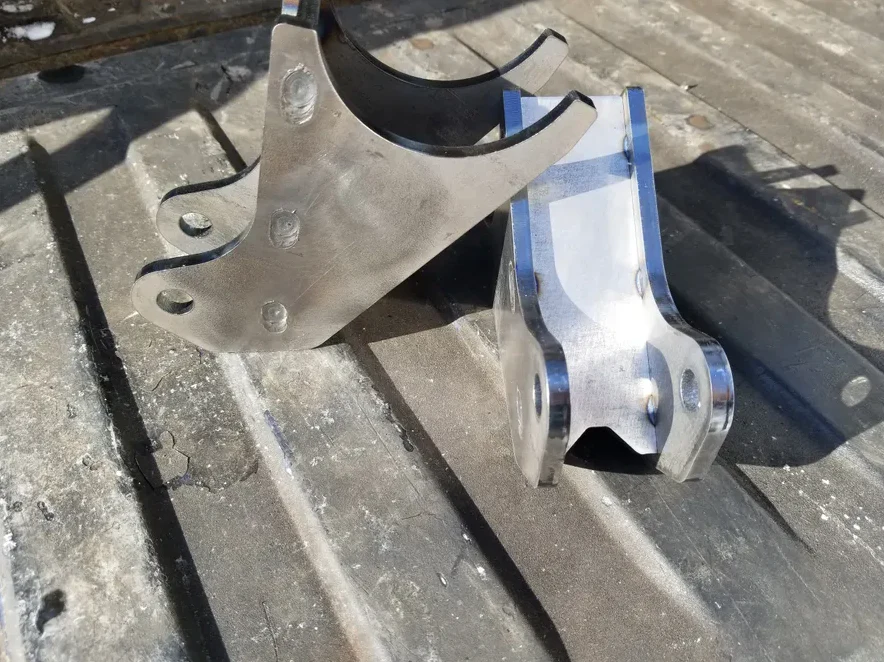

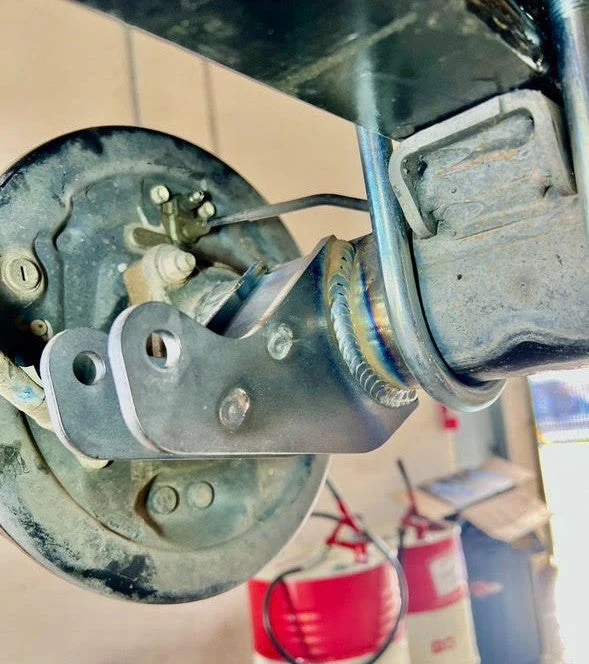

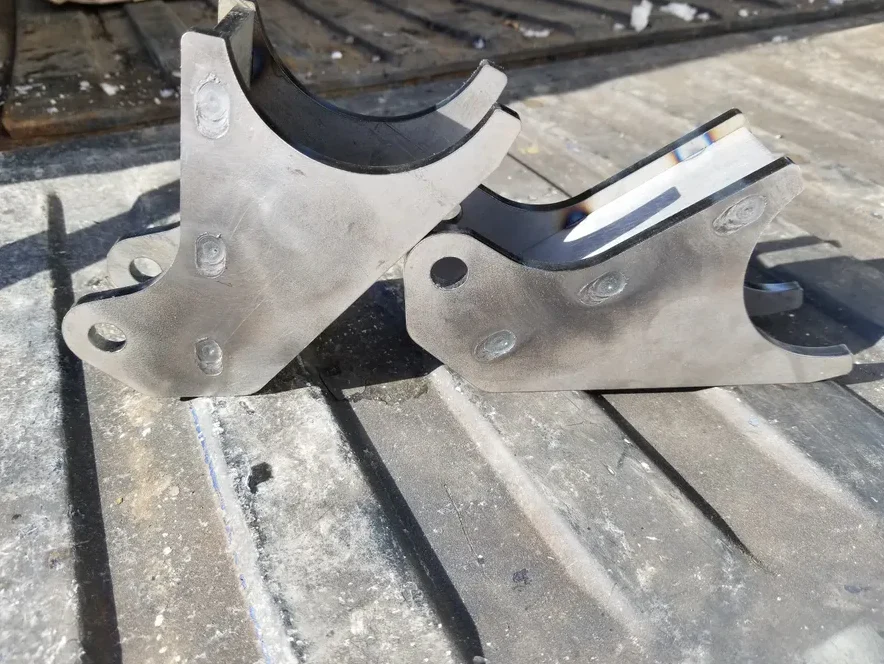

A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD.  As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.

-This specific tab comes in our 2G/3G Tacoma & 3G 4runner relocation kits
-Constructed from 1/4" HSLA (30% stronger) for extra toughness.
-They come welded as shown, jig built, with tab gap just over 1.5" for easy fit.
-Hole size is for 1/2" bolt.
-Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as:
2G/3G Tacomas, 3G 4runner, Ford Explorer 31 spline 8.8"
$29.70

Original: $99.00

-70%
Lower Axle Shock Tab Mount For Rod End Shocks (pair)—

$99.00

$29.70
Product image 1
Product image 2
Product image 3

Description

A pair of quality gusseted axle shock tab mounts that put the shock eye center 4" off axle OD.  As such it can be mounted clocked up, horizontal or clocked down a tad over 45 degrees to help stuff those long travel Fox or Kings under the body or bed.

-This specific tab comes in our 2G/3G Tacoma & 3G 4runner relocation kits
-Constructed from 1/4" HSLA (30% stronger) for extra toughness.
-They come welded as shown, jig built, with tab gap just over 1.5" for easy fit.
-Hole size is for 1/2" bolt.
-Axle end is 3.25" diameter, but designed to fit any axle with 3.125" to 3.25" OD such as:
2G/3G Tacomas, 3G 4runner, Ford Explorer 31 spline 8.8"Â
